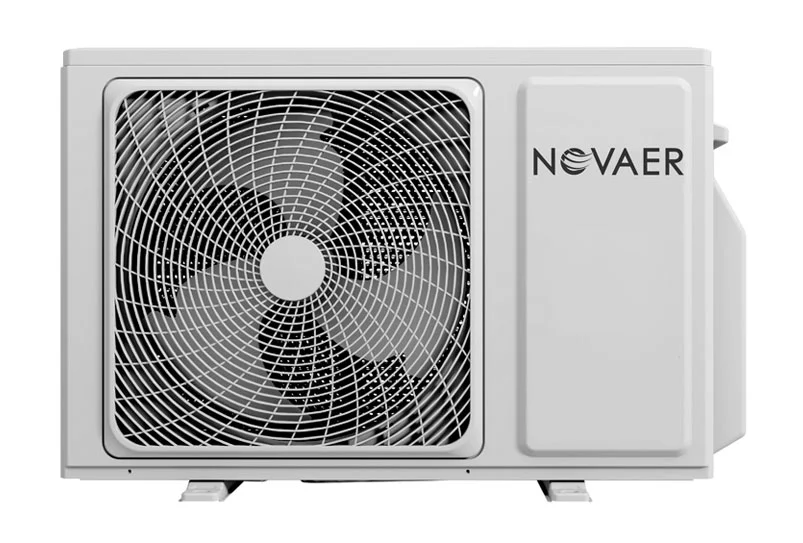

NOVAER - Wall SET 2.70/2.90kW A+ Heat Pump

This installation set includes a coordinated material package for the creation of electrical supply lines and protection. Suitable for air conditioning systems, split units, control cabinets or other technical systems with a single-phase 230-volt power supply. The installation SET has been configured for TT systems. A service socket for outdoor maintenance work is included in the set. The set provides all essential installation components typically required for a standards-compliant electrical supply line and device protection. The installation itself is not part of this offer. Installation set variants Variant 1 – Basic installation Material package for a standard installation of electrical supply lines including the necessary protection and maintenance switch. Required space in the existing distribution board: 5 module units for single-phase circuits (230 V) 10 module units in mixed three-phase distribution boards (400 V) Main terminal block with free outgoing capacity for L, N, PE Material package contains up to 16A: DE-HS1003 - Installation cable NYY 3x2.5qmm / electrical supply line DE-UN1000 - H07VK flexible conductor cable black 4 qmm DE-UN1100 - H07VK flexible conductor cable blue 4 qmm DE-UN1200 - H07VK flexible conductor cable green-yellow 4 qmm Various small materials for distribution without terminal block DE-HAGMCB03KA1P16A - miniature circuit breaker 16A (MCB) Material package contains for 20 to 25A: DE-HS1004 - Installation cable NYY 3x4qmm / electrical supply line DE-UN1001 - H07VK flexible conductor cable black 6 qmm DE-UN1101 - H07VK flexible conductor cable blue 6 qmm DE-UN1201 - H07VK flexible conductor cable green-yellow 6 qmm Various small materials for distribution without terminal block DE-HAGMCB06KA1P025A - miniature circuit breaker 25A (MCB) Material package contains for 32A: DE-HS1005 - Installation cable NYY 3x6qmm / electrical supply line DE-UN1002 - H07VK flexible conductor cable black 10 qmm DE-UN1102 - H07VK flexible conductor cable blue 10 qmm DE-UN1202 - H07VK flexible conductor cable green-yellow 10 qmm Various small materials for distribution without terminal block DE-HAGMCB06KA1P032A - miniature circuit breaker 32A (MCB) Material package contains for 40A: DE-HS1006 - Installation cable NYY 3x10qmm / electrical supply line DE-UN1003 - H07VK flexible conductor cable black 16 qmm DE-UN1103 - H07VK flexible conductor cable blue 16 qmm DE-UN1203 - H07VK flexible conductor cable green-yellow 16 qmm Various small materials for distribution without terminal block 0000 - miniature circuit breaker 40A (MCB) Material package contains for 50A: DE-HS1007 - Installation cable NYY 3x16qmm / electrical supply line 0000 - H07VK flexible conductor cable black 25 qmm 0000 - H07VK flexible conductor cable blue 25 qmm 0000 - H07VK flexible conductor cable green-yellow 25 qmm Various small materials for distribution without terminal block 0000 - miniature circuit breaker 50A (MCB) Material package contains for 63A: 0000 - Installation cable NYY 3x25qmm / electrical supply line 0000 - H07VK flexible conductor cable black 35 qmm 0000 - H07VK flexible conductor cable green-yellow 35 qmm 0000 - H07VK flexible conductor cable blue 35 qmm Various small materials for distribution without terminal block 0000 - miniature circuit breaker 63A (MCB) Material package included in all variants: DE-HAGMCB03KA1P16A - miniature circuit breaker 16A (MCB) DE-HAGCD264J - residual current device (RCD) DE-HAGKB263A - Bus Bar 1 pole DK-KG32T20340KL51V - maintenance and repair switch for outdoor units DE-MERT23018029 maintenance / service socket outdoor DK-HAGVZ025M - cable glands DE-WU097364040 - cable protection / cable routing channel with mounting material DE-WU05021413.2 - cable ties fastening material Variant 2 – Installation with 2-pole surge protection Extended material package with additional protection against grid disturbances and voltage spikes. Required space in the existing distribution board: 7 module units for single-phase circuits (230 V) in three-phase distribution boards 12 module units in mixed three-phase distribution boards (400 V) Main terminal block with free outgoing capacity for L, N, PE Material package additionally contains: DE-DEHSPD014-900454 - surge protection (SPD) for network and device protection 2-pole Installation components for integration of surge protection Variant 3 – Installation with 4-pole surge protection Extended material package with additional protection against grid disturbances and voltage spikes. Typical space requirement in the existing distribution board: 12 module units for single-phase circuits (230 V) in three-phase distribution boards 12 module units in mixed three-phase distribution boards (400 V) Main terminal block with free outgoing capacity for L1, L2, L3, N, PE Material package additionally contains: DE-DEHSPD016-952310 - surge protection (SPD) for network and device protection 4-pole Installation components for integration of surge protection Notes on space requirements and installation Before installing this installation set, it must be checked whether the existing distribution cabinet has sufficient space and capacity reserves for the required protection components. The specified module units (TE) serve as a guideline for estimating the required installation space. The installation set is designed for use in TN and TT systems; system-specific connection and installation requirements must be observed. If the available space or capacity reserve is insufficient, installation of a separate small distribution board or sub-distribution board may be required. This material is not included in this installation set. Installation of the included components may only be carried out by qualified electrical professionals in accordance with the applicable electrical safety requirements (5-rule safety principle). The scope of delivery does not include technical fire protection. If required, it must be planned, ordered and installed separately. Typical applications Control cabinets Split air conditioning systems Small heat pumps Ventilation units Technical systems with 230-volt supply NOTE: The product image is not binding and does not represent a claim to the contents of the set. This item is manufactured according to your specifications. Therefore, you have no right of withdrawal and no Coolenvi return policy applies.

Installation set for anchoring of usual two-point consoles with supporting trusses, primarily for installing appliances in commercial use on insulated facades with External Thermal Insulation Composite System. This SET is consisting of the following individual components in the specified quantities and for a maximum nominal capacity of approximately 12 kW and thickness of insulation of upt o 200mm max. Installation Set – For ETICS thickness from 100 - 200 mm: DE-WU0892165 – 1x acrylic sealant white – 310 ml DE-WU0903450205 – 3x Allround Injection Mortar WIT-VM 250 – 420 ml DE-WU090344121 - 6x 12x50mm Sieve sleeve anchor - Perforated brickwork, aerated concrete DE-WU0905461016 - 6x M10x260mm Anchor rod for injection system DE-WU041610 – 12x M10x30mm fender washer DE-WU031710 – 12x hex nuts M10 DE-WU0911100200 - 6x Distance Spacer Installation AMO MAX

This installation set includes a coordinated material package for the installation of electrical supply lines and circuit protection. Suitable for air conditioners, split units, control panels, or other technical equipment with a 3-phase 400-volt supply. A service socket for outdoor maintenance is included in the set. The set provides all essential installation components typically required for a standard-compliant electrical supply and device protection. The installation itself is not included in this offer. Installation Set Variants Variant 1 – Basic Installation Material package for a standard installation of electrical supply lines including the necessary circuit protection and maintenance switch. Required space in the existing distribution board: 10 TE for 3-phase outputs (400 V) Main terminal block with available outgoing capacity for L1, L2, L3, N, PE Material package includes for 16A: DE-HS1102 - NYY 5x2.5mm² installation cable / electrical supply DE-UN1000 - H07VK flexible conductor black 4 mm² DE-UN1100 - H07VK flexible conductor blue 4 mm² DE-UN1200 - H07VK flexible conductor green-yellow 4 mm² Various small components for distribution without terminal block DE-HAGMCB06KA3P16A - Circuit breaker 16A (MCB) Material package includes for 20–25A: DE-HS1106 - NYY 5x4mm² installation cable / electrical supply DE-UN1001 - H07VK flexible conductor black 6 mm² DE-UN1101 - H07VK flexible conductor blue 6 mm² DE-UN1201 - H07VK flexible conductor green-yellow 6 mm² Various small components for distribution without terminal block DE-HAGMCB06KA1P025A - Circuit breaker 25A (MCB) Material package includes for 32A: DE-HS1107 - NYY 5x6mm² installation cable / electrical supply DE-UN1002 - H07VK flexible conductor black 10 mm² DE-UN1102 - H07VK flexible conductor blue 10 mm² DE-UN1202 - H07VK flexible conductor green-yellow 10 mm² Various small components for distribution without terminal block DE-HAGMCB06KA3P32A - Circuit breaker 32A (MCB) Material package includes for 40A: 0000 - NYY 5x10mm² installation cable / electrical supply DE-UN1003 - H07VK flexible conductor black 16 mm² DE-UN1103 - H07VK flexible conductor blue 16 mm² DE-UN1203 - H07VK flexible conductor green-yellow 16 mm² Various small components for distribution without terminal block DE-HAGMCB06KA3P040A - Circuit breaker 40A (MCB) Material package includes for 50A: 0000 - NYY 3x16mm² installation cable / electrical supply 0000 - H07VK flexible conductor black 25 mm² 0000 - H07VK flexible conductor blue 25 mm² 0000 - H07VK flexible conductor green-yellow 25 mm² Various small components for distribution without terminal block DE-HAGMCB06KA3P050A - Circuit breaker 50A (MCB) Material package includes for 63A: 0000 - NYY 3x25mm² installation cable / electrical supply 0000 - H07VK flexible conductor black 35 mm² 0000 - H07VK flexible conductor green-yellow 35 mm² 0000 - H07VK flexible conductor blue 35 mm² Various small components for distribution without terminal block DE-HAGMCB06KA3P063A - Circuit breaker 63A (MCB) Material package includes in all variants: DE-HS1003 - NYY 3x2.5mm² installation cable / electrical supply DE-HAGMCB03KA1P16A - Circuit breaker 16A (MCB) DE-HAGCD264J - Residual current device (RCD) DE-HAG-KDN380A - 3-pole busbar DK-KG32T20340KL51V - Maintenance and service switch for outdoor devices DE-MERT23018029 - Outdoor maintenance/service socket DK-HAGVZ025M - Cable glands DE-WU097364040 - Cable protection / cable duct with mounting material DE-WU05021413.2 - Cable ties and mounting material Variant 2 – Installation with 4-Pole Surge Protection Extended material package with additional protection against network disturbances and voltage spikes. Typical space requirement in the existing distribution board: 12 TE for 3-phase outputs (400 V) Main terminal block with available outgoing capacity for L1, L2, L3, N, PE Material package additionally includes: DE-DEHSPD016-952310 - Surge protection device (SPD) for network and equipment, 4-pole Installation components for integrating the surge protection Notes on Space Requirement and Installation For using this installation set, ensure that the existing distribution board has sufficient space for the required protection components. The TE (module) values are provided as a guideline to estimate the necessary installation space. If the available space is insufficient, installation of a separate small distribution board or sub-distribution may be required. This material is not included in this installation set. The installation of the included components must only be performed by qualified electrical personnel in compliance with applicable electrical safety regulations. The scope of delivery does not include fire protection. If required, fire protection must be planned and installed separately. Typical Applications Control panels Split air-conditioning units Smaller heat pumps Ventilation units Technical equipment with 230-volt supply NOTE: The product image is not binding and does not represent a claim to the contents of the set. This item is manufactured according to your specifications. Therefore, you have no right of withdrawal and no Coolenvi return policy applies.

Installation kit for small split air conditioners, primarily for residential comfort applications, consisting of the following individual components in the corresponding quantities and for a maximum rated output of approximately 3.5 kW. Installation kit – basic equipment: DE-WU0862104001 – 4x M8 quick-release fasteners DE-WU04223830 – 4x M8 rubber washers DE-WU04168 – 4x M8 housing washers DE-WU0057850 – 4x M8x40 machine screws DE-WU0892143 – 1x PURLOGIC® Easy mounting foam DE-WU0892165 – 1x acrylic sealant white – 310 ml DE-WU0892165 – 1x acrylic sealant white – 310 ml DE-WU08925102 – 1x neutral silicone sealant WHITE – 310 ml DE-WU05021413 – 6x cable ties KBL 1 made of polyamide with plastic tongue DE-HS1001 – 3 m control cable 5 x 1.5 mm DE-WU097366090 – 3 m cable duct 60 x 90 mm, white DE-HS760002001 – 3 m PVC-U pipe 20 mm DE-HS760010001 – 1x PVC-U angle 20 mm, 90° DE-HS240016001 – 1x Tangit glue DE-WU0176204560 – 20x TX screws 4.5x60mm DE-WU590620635 - 20x dowels 6mm DE-WU0176203535 - 2x TX screws 3x35mm DE-S321.4046 - 3m CU double pipe 6, 12mm insulated DE-S282.0540 - 2x soldering sockets 6mm DE-S282.0542 - 2x soldering sockets 12mm 1x Flat-rate nitrogen content, soldering gas content, sealant Mounting kit variant 1 - For facades up to 3.5 kW cooling capacity: DE-WU0862009061 - 2x wall brackets 455mm DE-WU0862005006 - 2x end caps DE-WU590681266 - 4x universal wall anchors 12 mm DE-WU019210100 - 4x hexagon head screws M10x100 DE-WU041610 - 4x washers M10 Mounting Kit Variant 2 - For floor or flat roof mounting: DE-WU0862003056 - 2x Roof Support Beams 600mm DE-WU071392915 - 2x Construction Site Protection Mats in Strips NOTE: The product image is not binding and does not represent a claim to the contents of the set. This item is manufactured according to your specifications. Therefore, you have no right of withdrawal and no Coolenvi return policy applies.

Installation kit for small split air conditioners, primarily for residential comfort applications, consisting of the following individual components in the corresponding quantities and for a maximum rated output of approximately 3.5 kW. Installation kit – basic equipment: DE-WU0862104001 – 4x M8 quick-release fasteners DE-WU04223830 – 4x M8 rubber washers DE-WU04168 – 4x M8 housing washers DE-WU0057850 – 4x M8x40 machine screws DE-WU0892143 – 1x PURLOGIC® Easy mounting foam DE-WU0892165 – 1x acrylic sealant white – 310 ml DE-WU0892165 – 1x acrylic sealant white – 310 ml DE-WU08925102 – 1x neutral silicone sealant WHITE – 310 ml DE-WU05021413 – 6x cable ties KBL 1 made of polyamide with plastic tongue DE-HS1001 – 5 m control cable 5 x 1.5 mm DE-WU097366090 – 5 m cable duct 60 x 90 mm, white DE-HS760002001 – 5 m PVC-U pipe 20 mm DE-HS760010001 – 1x PVC-U angle 20 mm, 90° DE-HS240016001 – 1x Tangit glue DE-WU0176204560 – 30x TX screws 4.5x60mm DE-WU590620635 - 32x dowels 6mm DE-WU0176203535 - 2x TX screws 3x35mm DE-S321.4046 - 5m CU double pipe 6, 12mm insulated DE-S282.0540 - 2x soldering sockets 6mm DE-S282.0542 - 2x soldering sockets 12mm 1x Flat-rate nitrogen content, soldering gas content, sealant Mounting kit variant 1 - For facades up to 3.5 kW cooling capacity: DE-WU0862009061 - 2x wall brackets 455mm DE-WU0862005006 - 2x end caps DE-WU590681266 - 4x universal wall anchors 12 mm DE-WU019210100 - 4x hexagon head screws M10x100 DE-WU041610 - 4x washers M10 Mounting Kit Variant 2 - For floor or flat roof mounting: DE-WU0862003056 - 2x Roof Support Beams 600mm DE-WU071392915 - 2x Construction Site Protection Mats in Strips NOTE: The product image is not binding and does not represent a claim to the contents of the set. This item is manufactured according to your specifications. Therefore, you have no right of withdrawal and no Coolenvi return policy applies.

Installation kit for small split air conditioners, primarily for residential comfort applications, consisting of the following individual components in the corresponding quantities and for a maximum rated output of approximately 3.5 kW. Installation kit – basic equipment: DE-WU0862104001 – 4x M8 quick-release fasteners DE-WU04223830 – 4x M8 rubber washers DE-WU04168 – 4x M8 housing washers DE-WU0057850 – 4x M8x40 machine screws DE-WU0892143 – 1x PURLOGIC® Easy mounting foam DE-WU0892165 – 1x acrylic sealant white – 310 ml DE-WU0892165 – 1x acrylic sealant white – 310 ml DE-WU08925102 – 1x neutral silicone sealant WHITE – 310 ml DE-WU05021413 – 6x cable ties KBL 1 made of polyamide with plastic tongue DE-HS1001 – 10 m control cable 5 x 1.5 mm DE-WU097366090 – 10 m cable duct 60 x 90 mm, white DE-HS760002001 – 10 m PVC-U pipe 20 mm DE-HS760010001 – 1x PVC-U angle 20 mm, 90° DE-HS240016001 – 1x Tangit glue DE-WU0176204560 – 30x TX screws 4.5x60mm DE-WU590620635 - 32x dowels 6mm DE-WU0176203535 - 2x TX screws 3x35mm DE-S321.4046 - 10m CU double pipe 6, 12mm insulated DE-S282.0540 - 2x soldering sockets 6mm DE-S282.0542 - 2x soldering sockets 12mm 1x Flat-rate nitrogen content, soldering gas content, sealant Mounting kit variant 1 - For facades up to 3.5 kW cooling capacity: DE-WU0862009061 - 2x wall brackets 455mm DE-WU0862005006 - 2x end caps DE-WU590681266 - 4x universal wall anchors 12 mm DE-WU019210100 - 4x hexagon head screws M10x100 DE-WU041610 - 4x washers M10 Mounting Kit Variant 2 - For floor or flat roof mounting: DE-WU0862003056 - 2x Roof Support Beams 600mm DE-WU071392915 - 2x Construction Site Protection Mats in Strips

Installation kit for small split air conditioners, primarily for residential comfort applications, consisting of the following individual components in the corresponding quantities and for a maximum rated output of approximately 3.5 kW. Installation kit – basic equipment: DE-WU0862104001 – 4x M8 quick-release fasteners DE-WU04223830 – 4x M8 rubber washers DE-WU04168 – 4x M8 housing washers DE-WU0057850 – 4x M8x40 machine screws DE-WU0892143 – 1x PURLOGIC® Easy mounting foam DE-WU0892165 – 1x acrylic sealant white – 310 ml DE-WU0892165 – 1x acrylic sealant white – 310 ml DE-WU08925102 – 1x neutral silicone sealant WHITE – 310 ml DE-WU05021413 – 6x cable ties KBL 1 made of polyamide with plastic tongue DE-HS1001 – 15 m control cable 5 x 1.5 mm DE-WU097366090 – 15 m cable duct 60 x 90 mm, white DE-HS760002001 – 15 m PVC-U pipe 20 mm DE-HS760010001 – 1x PVC-U angle 20 mm, 90° DE-HS240016001 – 1x Tangit glue DE-WU0176204560 – 30x TX screws 4.5x60mm DE-WU590620635 - 32x dowels 6mm DE-WU0176203535 - 2x TX screws 3x35mm DE-S321.4046 - 15m CU double pipe 6, 12mm insulated DE-S282.0540 - 2x soldering sockets 6mm DE-S282.0542 - 2x soldering sockets 12mm 1x Flat-rate nitrogen content, soldering gas content, sealant Mounting kit variant 1 - For facades up to 3.5 kW cooling capacity: DE-WU0862009061 - 2x wall brackets 455mm DE-WU0862005006 - 2x end caps DE-WU590681266 - 4x universal wall anchors 12 mm DE-WU019210100 - 4x hexagon head screws M10x100 DE-WU041610 - 4x washers M10 Mounting Kit Variant 2 - For floor or flat roof mounting: DE-WU0862003056 - 2x Roof Support Beams 600mm DE-WU071392915 - 2x Construction Site Protection Mats in Strips NOTE: The product image is not binding and does not represent a claim to the contents of the set. This item is manufactured according to your specifications. Therefore, you have no right of withdrawal and no Coolenvi return policy applies.

Installation kit for small split air conditioners, primarily for residential comfort applications, consisting of the following individual components in the corresponding quantities and for a maximum rated output of approximately 3.5 kW. Installation kit – basic equipment: DE-WU0862104001 – 4x M8 quick-release fasteners DE-WU04223830 – 4x M8 rubber washers DE-WU04168 – 4x M8 housing washers DE-WU0057850 – 4x M8x40 machine screws DE-WU0892143 – 1x PURLOGIC® Easy mounting foam DE-WU0892165 – 1x acrylic sealant white – 310 ml DE-WU0892165 – 1x acrylic sealant white – 310 ml DE-WU08925102 – 1x neutral silicone sealant WHITE – 310 ml DE-WU05021413 – 6x cable ties KBL 1 made of polyamide with plastic tongue DE-HS1001 – 20 m control cable 5 x 1.5 mm DE-WU097366090 – 20 m cable duct 60 x 90 mm, white DE-HS760002001 – 20 m PVC-U pipe 20 mm DE-HS760010001 – 1x PVC-U angle 20 mm, 90° DE-HS240016001 – 1x Tangit glue DE-WU0176204560 – 30x TX screws 4.5x60mm DE-WU590620635 - 32x dowels 6mm DE-WU0176203535 - 2x TX screws 3x35mm DE-S321.4046 - 20m CU double pipe 6, 12mm insulated DE-S282.0540 - 2x soldering sockets 6mm DE-S282.0542 - 2x soldering sockets 12mm 1x Flat-rate nitrogen content, soldering gas content, sealant Mounting kit variant 1 - For facades up to 3.5 kW cooling capacity: DE-WU0862009061 - 2x wall brackets 455mm DE-WU0862005006 - 2x end caps DE-WU590681266 - 4x universal wall anchors 12 mm DE-WU019210100 - 4x hexagon head screws M10x100 DE-WU041610 - 4x washers M10 Mounting Kit Variant 2 - For floor or flat roof mounting: DE-WU0862003056 - 2x Roof Support Beams 600mm DE-WU071392915 - 2x Construction Site Protection Mats in Strips NOTE: The product image is not binding and does not represent a claim to the contents of the set. This item is manufactured according to your specifications. Therefore, you have no right of withdrawal and no Coolenvi return policy applies.
