Coolenvi™ - Supplementary SET for Heavy-duty on ETICS
Product number:
DE-CP2-003000.1
Product information "Coolenvi™ - Supplementary SET for Heavy-duty on ETICS "
Installation set for anchoring of usual two-point consoles with supporting trusses, primarily for installing appliances in commercial use on insulated facades with External Thermal Insulation Composite System. This SET is consisting of the following individual components in the specified quantities and for a maximum nominal capacity of approximately 12 kW and thickness of insulation of upt o 200mm max.
Installation Set – For ETICS thickness from 100 - 200 mm:
- DE-WU0892165 – 1x acrylic sealant white – 310 ml
- DE-WU0903450205 – 3x Allround Injection Mortar WIT-VM 250 – 420 ml
- DE-WU090344121 - 6x 12x50mm Sieve sleeve anchor - Perforated brickwork, aerated concrete
- DE-WU0905461016 - 6x M10x260mm Anchor rod for injection system
- DE-WU041610 – 12x M10x30mm fender washer
- DE-WU031710 – 12x hex nuts M10

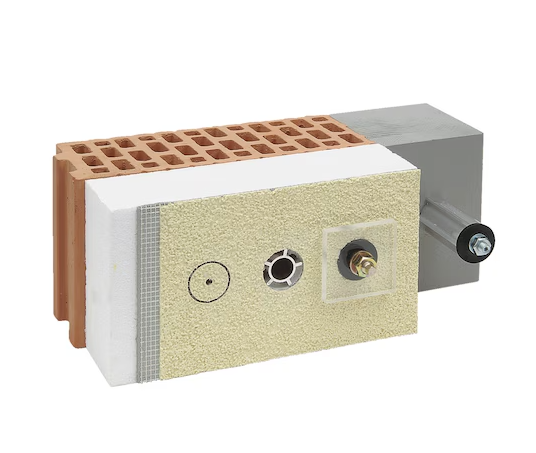

- DE-WU0911100200 - 6x Distance Spacer Installation AMO MAX
