Coolenvi™ - Mounting SET 400V Supply line and protection 3Phases
Product number:
DK-ZT003001.3
Product information "Coolenvi™ - Mounting SET 400V Supply line and protection 3Phases"
This installation set includes a coordinated material package for the installation of electrical supply lines and circuit protection. Suitable for air conditioners, split units, control panels, or other technical equipment with a 3-phase 400-volt supply. A service socket for outdoor maintenance is included in the set.
The set provides all essential installation components typically required for a standard-compliant electrical supply and device protection. The installation itself is not included in this offer.
Installation Set Variants
Variant 1 – Basic Installation
Material package for a standard installation of electrical supply lines including the necessary circuit protection and maintenance switch.
Required space in the existing distribution board:
- 10 TE for 3-phase outputs (400 V)
- Main terminal block with available outgoing capacity for L1, L2, L3, N, PE
Material package includes for 16A:
- DE-HS1102 - NYY 5x2.5mm² installation cable / electrical supply
- DE-UN1000 - H07VK flexible conductor black 4 mm²
- DE-UN1100 - H07VK flexible conductor blue 4 mm²
- DE-UN1200 - H07VK flexible conductor green-yellow 4 mm²
- Various small components for distribution without terminal block
- DE-HAGMCB06KA3P16A - Circuit breaker 16A (MCB)
Material package includes for 20–25A:
- DE-HS1106 - NYY 5x4mm² installation cable / electrical supply
- DE-UN1001 - H07VK flexible conductor black 6 mm²
- DE-UN1101 - H07VK flexible conductor blue 6 mm²
- DE-UN1201 - H07VK flexible conductor green-yellow 6 mm²
- Various small components for distribution without terminal block
- DE-HAGMCB06KA1P025A - Circuit breaker 25A (MCB)
Material package includes for 32A:
- DE-HS1107 - NYY 5x6mm² installation cable / electrical supply
- DE-UN1002 - H07VK flexible conductor black 10 mm²
- DE-UN1102 - H07VK flexible conductor blue 10 mm²
- DE-UN1202 - H07VK flexible conductor green-yellow 10 mm²
- Various small components for distribution without terminal block
- DE-HAGMCB06KA3P32A - Circuit breaker 32A (MCB)
Material package includes for 40A:
- 0000 - NYY 5x10mm² installation cable / electrical supply
- DE-UN1003 - H07VK flexible conductor black 16 mm²
- DE-UN1103 - H07VK flexible conductor blue 16 mm²
- DE-UN1203 - H07VK flexible conductor green-yellow 16 mm²
- Various small components for distribution without terminal block
- DE-HAGMCB06KA3P040A - Circuit breaker 40A (MCB)
Material package includes for 50A:
- 0000 - NYY 3x16mm² installation cable / electrical supply
- 0000 - H07VK flexible conductor black 25 mm²
- 0000 - H07VK flexible conductor blue 25 mm²
- 0000 - H07VK flexible conductor green-yellow 25 mm²
- Various small components for distribution without terminal block
- DE-HAGMCB06KA3P050A - Circuit breaker 50A (MCB)
Material package includes for 63A:
- 0000 - NYY 3x25mm² installation cable / electrical supply
- 0000 - H07VK flexible conductor black 35 mm²
- 0000 - H07VK flexible conductor green-yellow 35 mm²
- 0000 - H07VK flexible conductor blue 35 mm²
- Various small components for distribution without terminal block
- DE-HAGMCB06KA3P063A - Circuit breaker 63A (MCB)
Material package includes in all variants:
- DE-HS1003 - NYY 3x2.5mm² installation cable / electrical supply
- DE-HAGMCB03KA1P16A - Circuit breaker 16A (MCB)
- DE-HAGCD264J - Residual current device (RCD)
- DE-HAG-KDN380A - 3-pole busbar
- DK-KG32T20340KL51V - Maintenance and service switch for outdoor devices
- DE-MERT23018029 - Outdoor maintenance/service socket
- DK-HAGVZ025M - Cable glands
- DE-WU097364040 - Cable protection / cable duct with mounting material
- DE-WU05021413.2 - Cable ties and mounting material

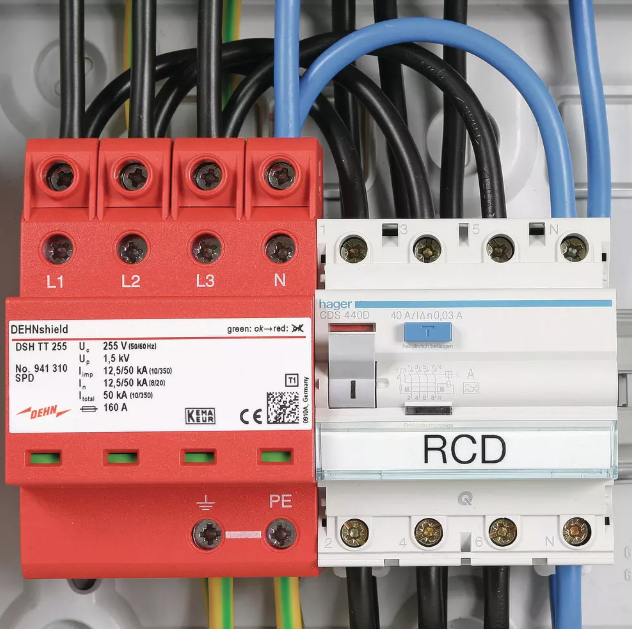

Variant 2 – Installation with 4-Pole Surge Protection
Extended material package with additional protection against network disturbances and voltage spikes.
Typical space requirement in the existing distribution board:
- 12 TE for 3-phase outputs (400 V)
- Main terminal block with available outgoing capacity for L1, L2, L3, N, PE
Material package additionally includes:
- DE-DEHSPD016-952310 - Surge protection device (SPD) for network and equipment, 4-pole
- Installation components for integrating the surge protection
Notes on Space Requirement and Installation
-
For using this installation set, ensure that the existing distribution board has sufficient space for the required protection components. The TE (module) values are provided as a guideline to estimate the necessary installation space.
- If the available space is insufficient, installation of a separate small distribution board or sub-distribution may be required. This material is not included in this installation set.
- The installation of the included components must only be performed by qualified electrical personnel in compliance with applicable electrical safety regulations.
- The scope of delivery does not include fire protection. If required, fire protection must be planned and installed separately.
Typical Applications
- Control panels
- Split air-conditioning units
- Smaller heat pumps
- Ventilation units
- Technical equipment with 230-volt supply
NOTE: The product image is not binding and does not represent a claim to the contents of the set. This item is manufactured according to your specifications. Therefore, you have no right of withdrawal and no Coolenvi return policy applies.
