Technical Subcategory for Electrical Installation Materials

Specialized components within structured electrical systems for industrial, commercial and building services applications.

Electrical Installation Sets EV Charging Equipment Electrical Cables & Wires Fuses & Power Distribution Cable Trunking & Conduits Terminals & Marking

Selected Professional Electrical Materials

This sub-category provides direct access within our structured electrical materials portfolio.
Use the navigation buttons above to directly select your required technical category.
Use filters below to precisely refine products within the selected category.

Tip

New

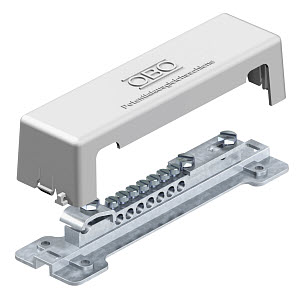

OBO Equipotential Bonding Bar 9-slots 1809 - 188x52x44,5 mm

Item - Quantity: 1 Pc

The OBO equipotential bonding bar is used for standard-compliant equipotential bonding according to DIN VDE 0100-410/540 as well as lightning protection equipotential bonding in accordance with DIN VDE 0185-305. It is lightning current rated up to 100 kA (10/350) and suitable for demanding installations in residential, commercial and industrial applications. Connections: 9 connection options Rating: 100 kA Length: 188 mm Height: 52 mm Depth: 44.5 mm 7× solid or stranded conductors up to 25 mm² 7× fine-stranded conductors up to 16 mm² 1× round conductor Rd 8–10 1× flat conductor up to FL30 or round conductor Rd 8–10 The contact strip is made of nickel-plated brass, ensuring reliable and durable contact. The base plate and cover are made of grey polystyrene. Screws and clamps are made of galvanized steel. Due to its robust design and high current capacity, the equipotential bonding bar provides a safe and long-lasting solution for electrical protection and standard-compliant grounding installations in indoor areas.

€15.60*

Tip

New

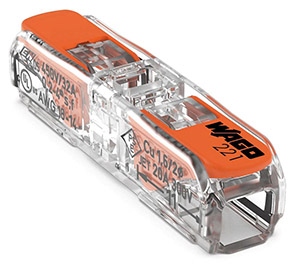

WAGO Lever Through Connector – 0.2–4 mm² Transparent/Orange

Item - Quantity: PU

WAGO 221-2411 through connector with lever – 2-conductor, 0.2–4 mm². The WAGO through connector is a compact and highly reliable connection solution for secure wiring of solid, stranded and fine-stranded conductors from 0.2 to 4 mm². Thanks to the innovative lever technology, connecting and disconnecting is completely tool-free. This enables fast, safe and reusable installation – ideal for confined installation spaces. The slim design ensures minimal space requirements in control cabinets and electrical installations. The transparent housing allows clear visual inspection of the connection, while the orange lever mechanism provides intuitive operation. Type: WAGO 221-2411 Connection: 2-conductor through connector Conductor size: 0.2 – 4 mm² AWG: up to AWG 12 Suitable for: solid, stranded and fine-stranded conductors Technology: tool-free lever connection Housing: transparent / orange The 221 series is EN- and UL-approved and suitable for most common electrical installations. An accessible test port allows safe measurement even when installed.

Content: 60 Pcs (€0.52* / 1 Pcs)

Variants from €0.75*

€31.32*

Tip

New

PHOENIX - UK2,5N Universal Terminal Block 2.5 mm² – Grey, 5.2 mm Width

Item - Quantity: PU

The PHOENIX UK2,5N universal terminal block is designed for conductors up to 2.5 mm². With a universal mounting foot and a width of 5.2 mm, it is suitable for control cabinet and industrial wiring applications. The grey design supports standardized identification within modern electrical systems. Type: UK2,5N Conductor size: up to 2.5 mm² Colour: Grey Universal mounting foot: Yes Width: 5.2 mm Application: Industry, control panels, electrical installations

Content: 50 Pcs (€1.80* / 1 Pcs)

Variants from €1.95*

€89.75*

Tip

New

PHOENIX - KMK 29x8mm Label Field - Cable Marker 10–25mm

Item - Quantity: PU

The Phoenix Contact KMK cable marker is a high-quality plastic marker designed for professional identification of cables with a diameter of 10–25 mm. It is specifically developed for industrial applications. With a label field of 29 × 8 mm, the marker provides sufficient space for clear and durable markings. The design is supplied without cable ties, allowing flexible installation with separately selected fastening solutions. Material: High-quality plastic Cable diameter: 10–25 mm Label field: 29 × 8 mm Fluorescent: No Transparent: No With text field: Yes Mounting: Without cable ties Ideal for electrical engineering, control cabinet construction, industrial installations, building technology and maintenance environments requiring structured and compliant cable identification. Robust design ensures reliable and long-lasting performance. Phoenix Contact KMK 29x8mm Label Field - Cable Marker 10–25mm

Content: 100 Pcs (€1.28* / 1 Pcs)

Variants from €1.40*

€128.35*

Electrical Engineering and Installation Services – Europe

Electrical systems form the foundation of modern infrastructure across industrial, commercial and energy applications.

We provide integrated solutions including component supply, system engineering, installation and commissioning within MEP environments.

All installations are executed in accordance with applicable IEC standards to ensure safety, efficiency and operational reliability.

Coolenvi™ – We make energy work.
