Installation Materials & Fixing Systems

Suitable for mounting rails: 41 x 22 mm, 41 x 41 mm, 41 x 62 mm, 41 x 44 mm, instead of washers for a stable connection of, among other things, support structures. Length: 55 mmThickness: 6 mmLeg Length: 47 mmSlotted Hole Length: 40 mmSlotted Hole Width: 15 mmWeight: 390 gSurface: GalvanizedMaterial: Structural steel, 1.0037Sustainability: Resources, pollutants / emissions

End cap for VARIFIX® mounting rails, designed for a clean and safe closure of open rail ends. Protects against dirt ingress and reduces risk of injury. Product features Suitable for mounting rails 26/18 to 41/124 Compatible with VARIFIX® profile systems Ensures safe and clean rail termination Quick and easy installation Note For double profiles, 2 end caps are required per end. Technical data MaterialPE (polyethylene) ColorBlack

VARIFIX® Quick Fastener Systemfix 41 for mounting all Varifix mounting rails in the 41 series. Secures instantly with a 1/4 turn. Force-fit connection to the rail. Precise fit in the mounting rail – alignment within the rail is possible. One-handed installation is possible. Facilitates installation, especially when working on a ladder. Compatible with all Systemfix 41 models. Suspensions with threaded rods for long lengths are possible. Content: 25 Pcs. Our products with the Cradle to Cradle Certified® certificate are resource-efficient and low in pollutants. The standard assesses the safety, recyclability, and pollutant content of materials in the final product. The focus here is on resource conservation, for example, through the use of recycled materials in the manufacturing process. Cradle to Cradle® certified. Enhance your building with pollutant-tested materials. Expanded scope of application for GreenBuilding and building certifications according to LEED®, BREEAM® and DGNB

Suitable for heavy and normal loads Suitable for: Heavy and normal loads.Min. coefficient of friction: 0.6 µMaterial thickness: 8 mmTemperature range: -40 to 115 °CMaterial: Rubber granules bonded with PURColor: BlackWidth: 250 mmLength: 5000 mmWeight per m²: 6.88 kgDensity: 860 kg/m³Min. elongation at break: 60%Building material class / condition: E - Normally flammable / according to DIN EN 13501-1 Type name: REGUPOL cargo mat 7210

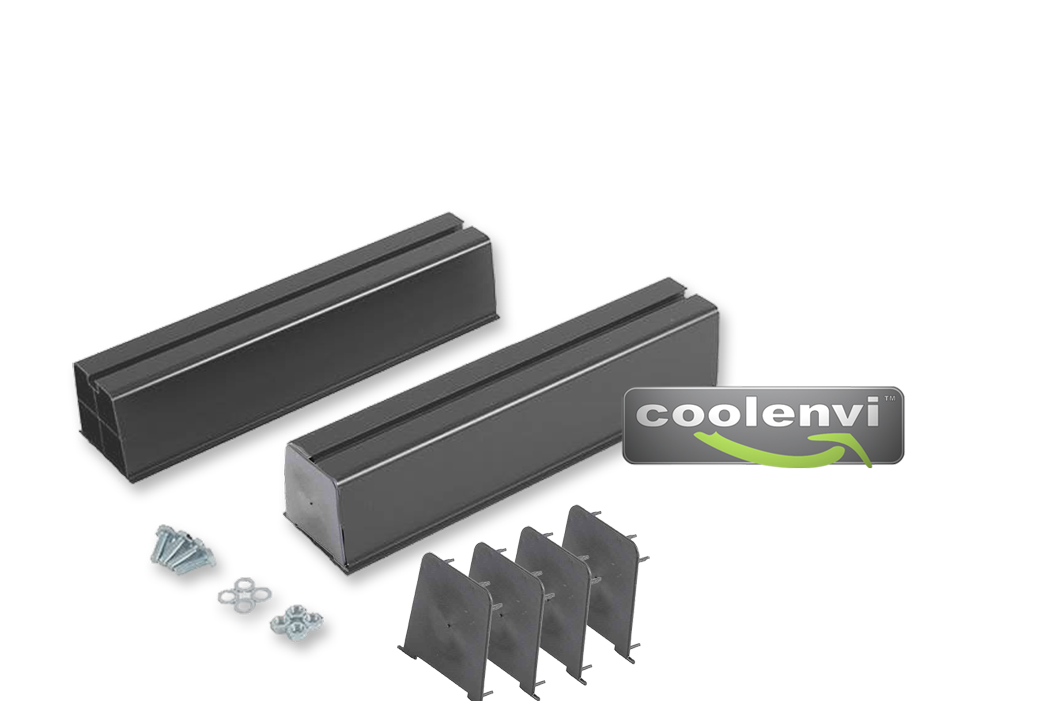

Standard mounting beam – 450 mm set (2 pieces incl. bolts). Robust PVC mounting block for all types of outdoor units. UV- and high-temperature resistant, with a load capacity of up to 450 kg/m (static). Delivered with fastening bolts. Ideal for structured cable management and secure installation with very low additional weight. This set is mainly used for proper installation of split air-conditioning outdoor units as well as cable trays on flat roofs. Color: BlackWeight: 0.9 kg Contents: 1 set (2 pieces incl. bolts) Perfect for durable and secure mounting of outdoor units.

Universally applicable wall bracket for mounting pipes, assemblies, and much more.Base plate height: 126 mmBase plate width: 50 mmBase plate thickness: 8 mmProfile height: 41 mmProfile width: 41 mmProfile thickness: 2.5 mmSlotted hole length: 20 mmSlotted hole width: 13 mmHole spacing: 75 mmSlotted hole length 2: 20 mmSlotted hole width 2: 12.5 mmHole spacing 2: 35 mmSurface: GalvanizedMaterial: Structural steel, 1.0037Sustainability: Resources, pollutants / Emissions

Universal wall bracket for secure fastening of pipe systems, equipment and structural components. Designed for versatile use in installation and construction applications. Product features Robust design made of galvanized steel Suitable for pipes, installations and technical equipment Compatible with VARIFIX® 41/41 profile system Flexible installation due to slotted holes Technical data Length630 mm Profile size41 x 41 mm MaterialStructural steel 1.0037 SurfaceGalvanized Base plate (H x W x T)126 x 50 x 8 mm Profile thickness2.5 mm Slot hole 120 x 13 mm Hole spacing 175 mm Slot hole 220 x 12.5 mm Hole spacing 235 mm

Efficient vibration damping reduces vibrations and noise during the installation of technical equipment.  Durable material consisting of robust and weather-resistant SBR rubber for maximum service life. Easy installation enables quick and secure mounting with versatile application possibilities. High load-bearing capacity and stability ensure reliable performance under various requirements. Low-maintenance properties offer resistance to weathering, UV radiation, and many chemicals. Ideal for safe and long-lasting use in building technology and air conditioning installation. Note The damping bases with article numbers 0862003052, 0862003053, 0862003054, 0862003055, 0862003056, 0862003057 are not compatible with the risers 0862003138 and 0862003139. Our damping bases are specifically designed for professional use in building technology and air conditioning systems. They minimize noise and vibration transmission, contributing to quieter and more efficient system operation. Thanks to their robust material quality, they are ideal for long-term use under demanding conditions.

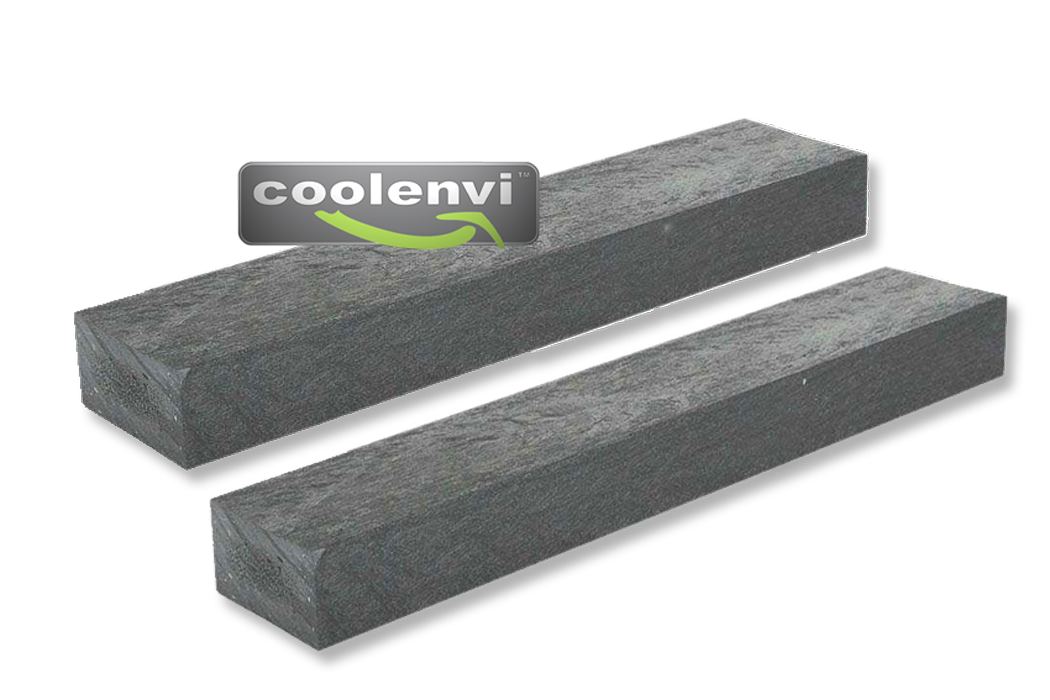

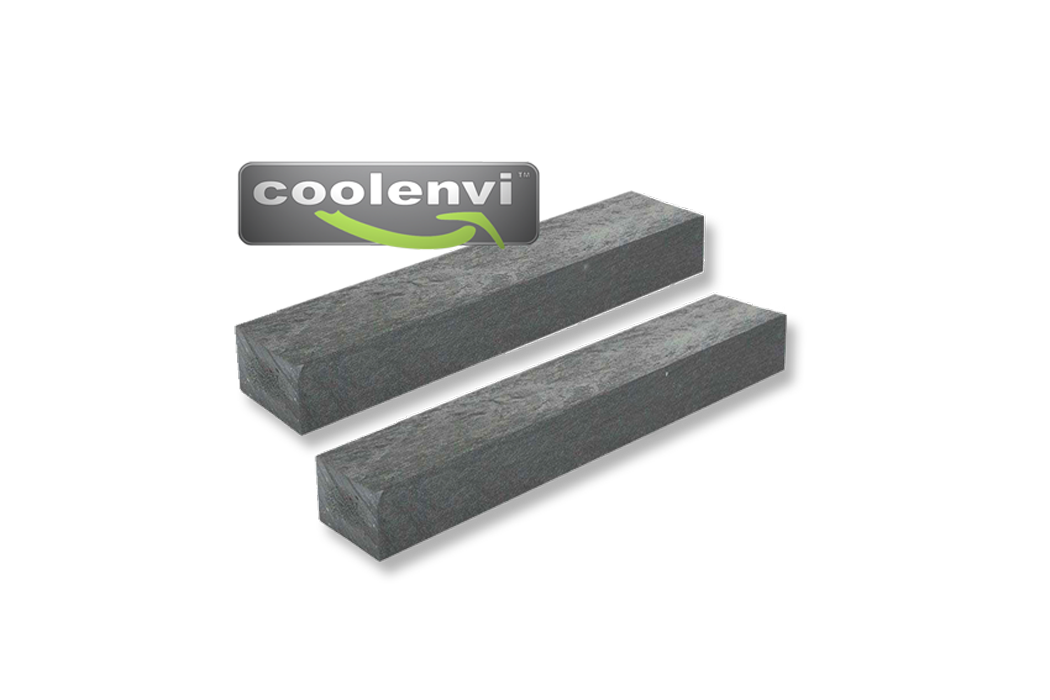

Durable full-synthetic mountblock, black, solid and sustainable, ideal for any type of outdoor unit. Flexible mounting options. Length: 450 mm, other lengths available on request. Supplied as a 2-piece set, perfect for roof or floor installations. Material: Full-synthetic Length: 450 mm Width: 100 mm Height: 50 mm Color: Black Weight: 3.9 kg per block Unit: 2-piece set Suitable for any outdoor unit Sustainable and durable

Durable full-synthetic mountblock, black, solid and sustainable, ideal for any type of outdoor unit. Flexible mounting options. Length: 900 mm, other lengths available on request. Supplied as a 2-piece set, perfect for roof or floor installations. Material: Full-synthetic Length: 900 mm Width: 100 mm Height: 50 mm Color: Black Weight: 3.9 kg per block Unit: 2-piece set Suitable for any outdoor unit Sustainable and durable

Efficient vibration damping reduces vibrations and noise during the installation of technical equipment.  Durable material consisting of robust and weather-resistant SBR rubber for maximum service life. Easy installation enables quick and secure mounting with versatile application possibilities. High load-bearing capacity and stability ensure reliable performance under various requirements. Low-maintenance properties offer resistance to weathering, UV radiation, and many chemicals. Ideal for safe and long-lasting use in building technology and air conditioning installation. Note The damping bases with article numbers 0862003052, 0862003053, 0862003054, 0862003055, 0862003056, 0862003057 are not compatible with the risers 0862003138 and 0862003139. Our damping bases are specifically designed for professional use in building technology and air conditioning systems. They minimize noise and vibration transmission, contributing to quieter and more efficient system operation. Thanks to their robust material quality, they are ideal for long-term use under demanding conditions.

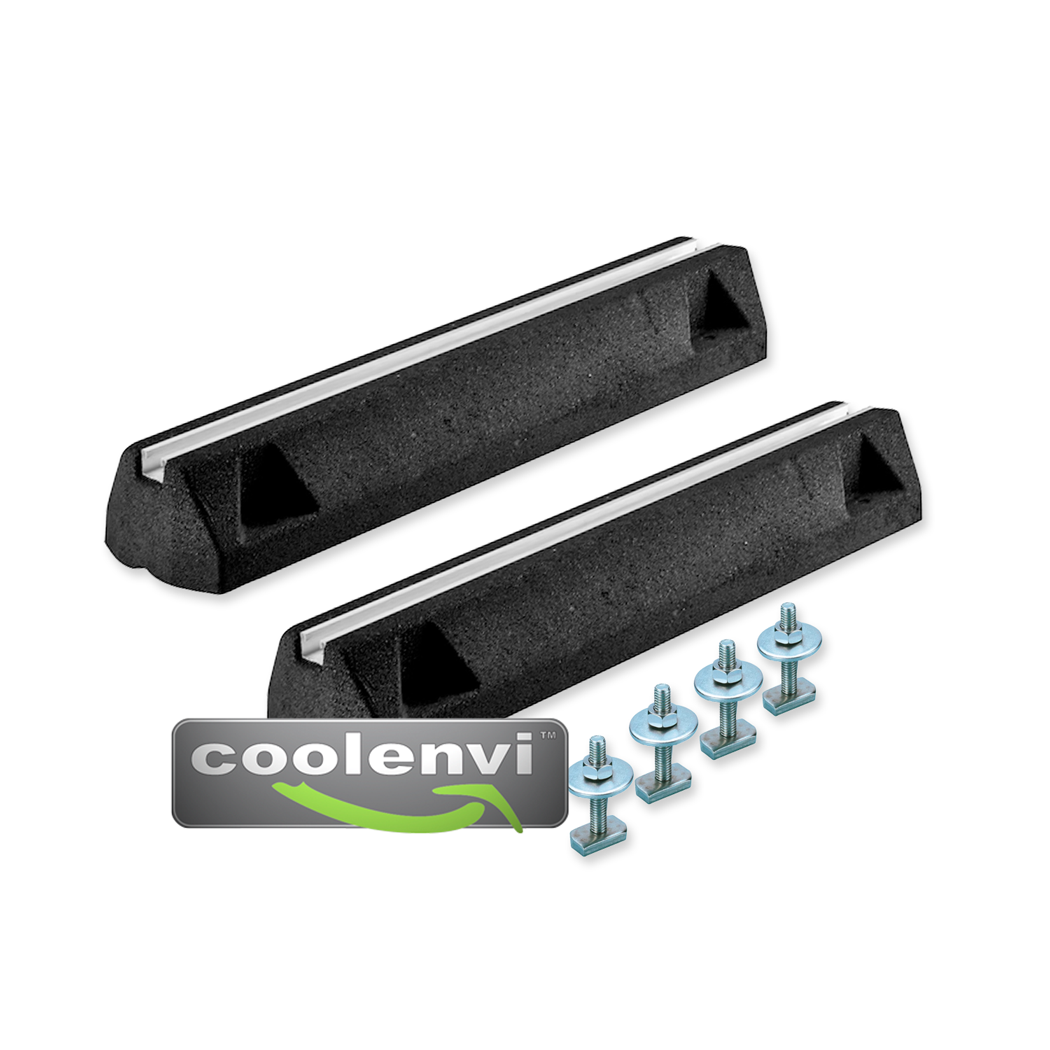

The mounting base enables easy and secure installation of air conditioning units and pipework on flat roofs and in outdoor areas. Thanks to its high load-bearing capacity and excellent wind resistance, it is designed for reliable use under varying weather conditions. The set includes four T-head screws for professional installation. For installation on flat roofs, the use of suitable rubber or construction protection mats as a base is recommended. Please note: For smaller air conditioning units (e.g., up to approximately 3.5 kW cooling capacity), a 400 mm long base may be sufficient for installation, but it does not provide adequate wind load protection. For stability and safety reasons, a minimum length of 600 mm, ideally 1,000 mm, is recommended.

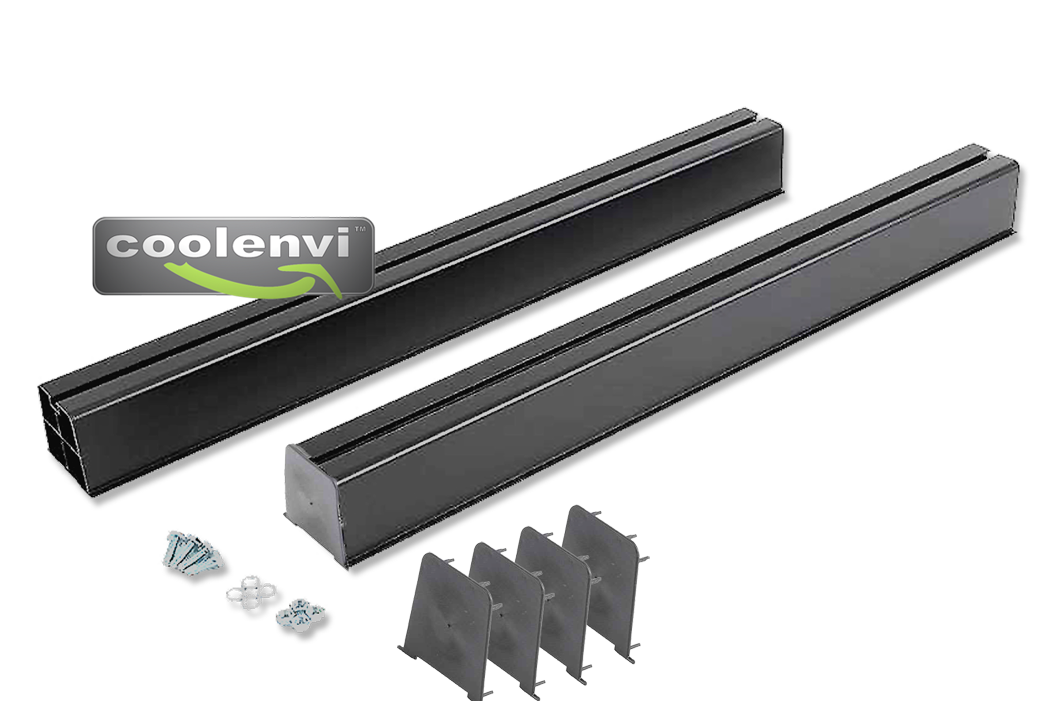

Standard mounting beam – 1000 mm set (2 pieces incl. bolts). Robust PVC mounting block for all types of outdoor units. UV- and high-temperature resistant, with a load capacity of up to 450 kg/m (static). Delivered with fastening bolts. Ideal for structured cable management and secure installation with very low additional weight. This set is mainly used for proper installation of split air-conditioning outdoor units as well as cable trays on flat roofs. Color: BlackWeight: 1.5 kg Contents: 1 set (2 pieces incl. bolts) Perfect for durable and secure mounting of outdoor units.

Mounting base for easy installation of air conditioning units or cable trays with versatile application options on flat roofs or outdoor areas. High load-bearing capacity and wind resistance ensure reliable performance under various weather conditions. The set includes four hammerhead screws for mounting. Please order sufficient rubber mats or construction protection mats as a base for flat roof installation.

Support bracket designed to reinforce wall brackets and mounting rail systems. Can be installed above, below or alongside consoles to increase load capacity and stability. Product features Increases load capacity of rail systems and brackets Compatible with VARIFIX® mounting rails Robust galvanized steel construction Flexible installation via slotted holes Cradle to Cradle® certified Technical data Angle45° Length418 mm Width50 mm Height295 mm Material thickness3 mm MaterialSteel 1.0332 SurfaceGalvanized Slot hole50 x 13 mm Hole diameter13 mm Permissible load4.5 kN Weight955 g

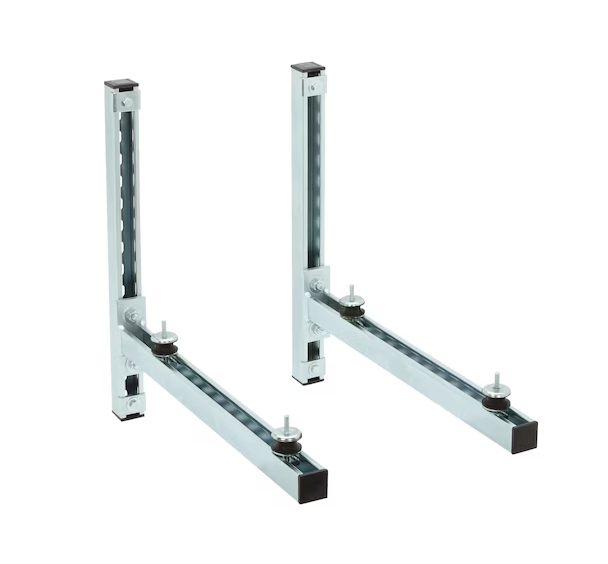

VARIFIX® heavy-duty bracket set for wall mounting of HVAC units, ventilators and pumps. Equipped with rubber-metal buffers, pre-assembled hammerhead bolts, and adjustable fixing with sliding nuts. Bracket length: 640 mm Vertical support length: 520 mm Surface: Galvanized Material: Steel/Rubber Load capacity per pair: 160 kg Product weight per piece: 6090 g Integrated rubber-metal buffer Easy height adjustment Pre-assembled hammerhead bolts Flexible fixing via sliding nuts Quick wall mounting with cut-to-length rail 41/41/1.8 including end caps Sustainability: Resources, emissions, low hazardous substances

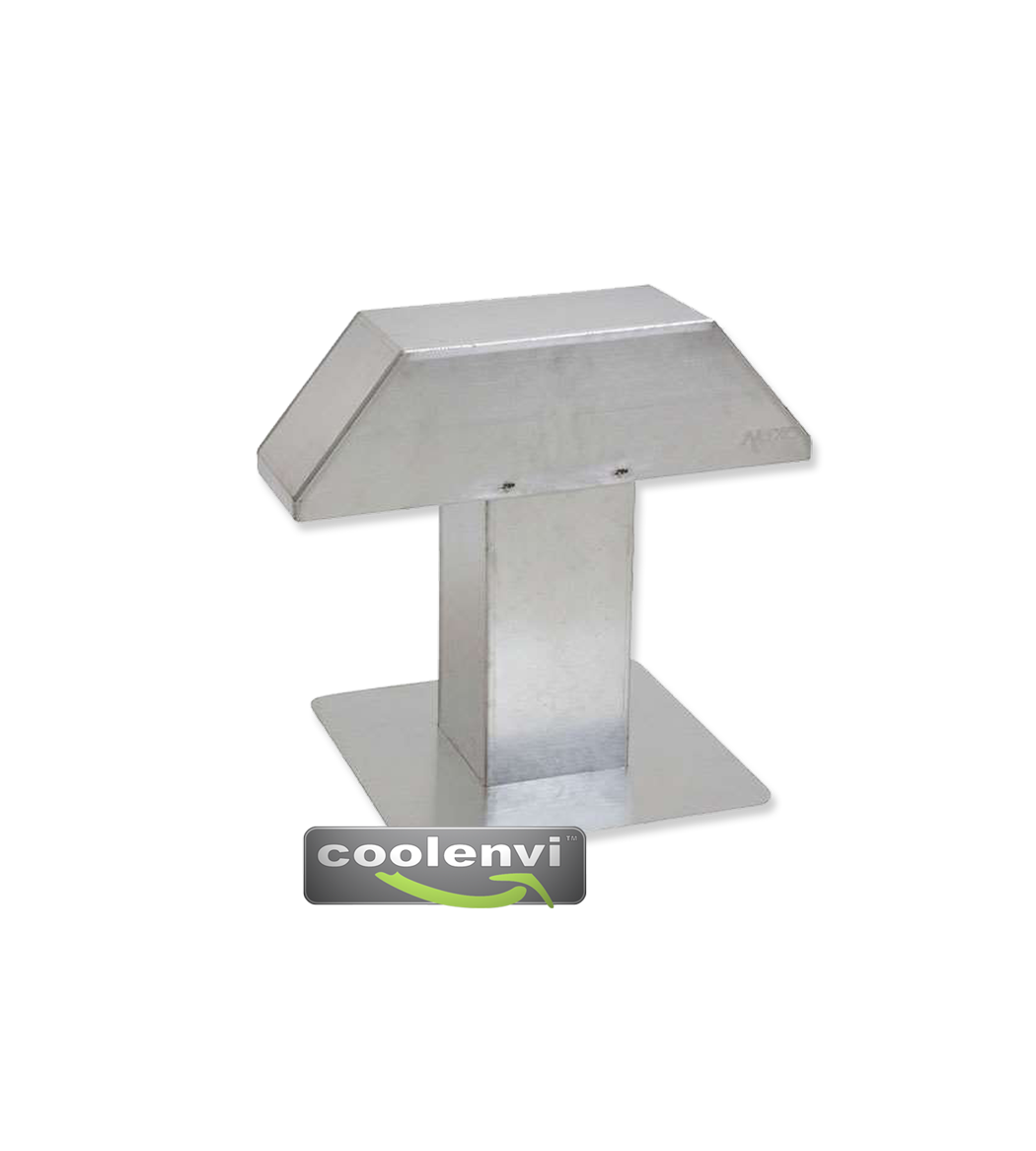

This roof inlet is designed for the safe and reliable routing of cables and wires on flat roofs. Its corrosion-resistant construction ensures long-term durability without rust or leakage. The wide base surface allows for a secure and watertight connection to the roof membrane. Manufactured from lightweight 2 mm aluminium plate, the unit combines structural stability with ease of installation. The interior is smoothly rounded beneath the protective hood to protect cables and insulation coatings from mechanical damage. With a generous passage opening of 125 × 125 mm and a height of 600 mm, the roof inlet provides ample space for organised and protected cable routing. For enhanced thermal insulation and condensation protection, optional insulation using Armaflex® insulation materials and technical foam is available. This optional insulation improves energy efficiency and provides additional protection for sensitive cables and conduits, particularly in demanding climatic conditions. Technical Specifications Application: Cable and wire routing on flat roofs Material: Aluminium, 2 mm thickness Corrosion resistance: Rust-free Passage opening: 200 × 200 mm Height: 600 mm Base dimensions: 425 × 425 mm Optional: Mandatory Armaflex® and/or PU-Foam Insulation after installation.

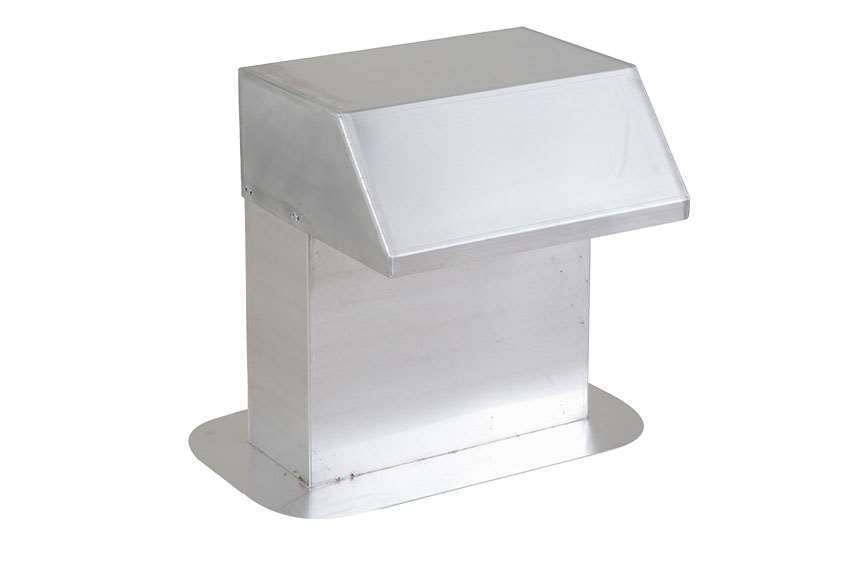

This roof inlet is designed for the safe and reliable routing of cables and wires on flat roofs. Its corrosion-resistant construction ensures long-term durability without rust or leakage. The wide base surface allows for a secure and watertight connection to the roof membrane. Manufactured from lightweight 2 mm aluminium plate, the unit combines structural stability with ease of installation. The interior is smoothly rounded beneath the protective hood to protect cables and insulation coatings from mechanical damage. With a generous passage opening of 200 × 200 mm and a height of 600 mm, the roof inlet provides ample space for organised and protected cable routing. For enhanced thermal insulation and condensation protection, optional insulation using Armaflex® insulation materials and technical foam is available. This optional insulation improves energy efficiency and provides additional protection for sensitive cables and conduits, particularly in demanding climatic conditions. Technical Specifications Application: Cable and wire routing on flat roofs Material: Aluminium, 2 mm thickness Corrosion resistance: Rust-free Passage opening: 200 × 200 mm Height: 600 mm Base dimensions: 500 × 500 mm Optional: Mandatory Armaflex® and/or PU-Foam Insulation after installation.

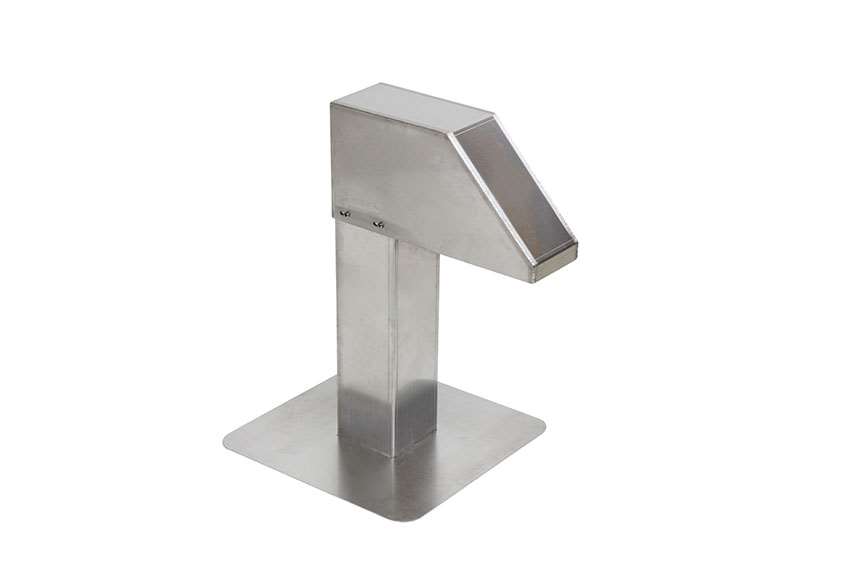

This roof inlet is designed for the safe and reliable routing of cables and wires on flat roofs. Its corrosion-resistant construction ensures long-term durability without rust or leakage. The wide base surface allows for a secure and watertight connection to the roof membrane. Manufactured from lightweight 2 mm aluminium plate, the unit combines structural stability with ease of installation. The interior is smoothly rounded beneath the protective hood to protect cables and insulation coatings from mechanical damage. With a generous passage opening of 500 × 200 mm and a height of 600 mm, the roof inlet provides ample space for organised and protected cable routing. For enhanced thermal insulation and condensation protection, optional insulation using Armaflex® insulation materials and technical foam is available. This optional insulation improves energy efficiency and provides additional protection for sensitive cables and conduits, particularly in demanding climatic conditions. Technical Specifications Application: Cable and wire routing on flat roofs Material: Aluminium, 2 mm thickness Corrosion resistance: Rust-free Passage opening: 500 × 200 mm Height: 600 mm Base dimensions: 680 × 425 mm Optional: Mandatory Armaflex® and/or PU-Foam Insulation after installation.

The Big Foot Multi Frame XL Extension is a robust and versatile extension for flat roof mounting systems. Designed for easy assembly, it supports a wide variety of units while maintaining full roof functionality. Each of the two support feet measures 330x330 mm and is individually height-adjustable from 330 to 610 mm, allowing precise alignment on uneven surfaces. The large footplates ensure even load distribution and protect the roof surface. With a maximum load capacity of 500 kg, the extension is suitable for demanding applications. Supplied boxed with clamp kits, it features hot-dipped galvanized steel construction, recyclable EPDM foam mats, and recycled glass-filled nylon feet. Salt spray tested to 1000 hours. Technical features: Compatible with a wide variety of units Feet dimensions: 330 x 330 mm Height adjustment: 330–610 mm Maximum load: 500 kg Simple to assemble Supplied boxed with clamp kits Hot-dipped galvanized steel Recyclable EPDM foam mat Recycled glass-filled nylon feet Salt spray tested to 1000 hours Order information: Product: Big Foot Multi Frame XL Extension – 1500x1200 mm – 2x330 mm Foot Article code: BFS-1228-000 External dimensions: L1500 x W1200 mm Weight: 34 kg EAN: 5414618006753 SKU: 10425840000 OEM: BN9732 Unit: Pc. Minimum order quantity: 1 Pc. Brand: Big Foot Systems Product group: A The Big Foot Multi Frame XL Extension provides a durable, flexible, and high-quality solution for extending flat roof mounting systems.

The Big Foot Multi Frame XL is an extremely robust and flexible mounting system for flat roofs. It has been developed for quick and easy installation and ensures maximum stability as well as unrestricted roof usability – even when installed. Thanks to the three integrated crossbars and the infinitely expandable design on both sides, the system can be optimally adapted to different requirements. Each support foot is individually height-adjustable and removable if required, allowing precise alignment even on uneven roof surfaces. The large footplates ensure even load distribution and protect the roof surface. With a maximum load capacity of 500 kg the Multi Frame XL is ideally suited for demanding applications. Inclined anti-vibration mats as well as a higher construction version are optionally available to meet additional requirements. Technical features: Easy installation Extremely robust construction 3 crossbars Infinitely expandable from both sides Roof remains fully functional Individually height-adjustable and removable feet Foot dimensions (L x W): 305 x 305 mm Height adjustment: 335–440 mm Maximum load: 500 kg Threaded rod: M24 Optional: increased construction (height adjustment 335–660 mm) Optional: inclined anti-vibration mats Order information: Product: Big Foot Multi Frame XL (boxed) Dimensions: 1500 x 1200 mm Feet: 4 x 305 mm Article code: BFS-1515-000 Weight: 43 kg EAN: 5414618981616 SKU: 10371320000 OEM: B9731 Unit: Pc. Minimum order quantity: 1 Pc. Brand: Big Foot Systems Product group: A The Big Foot Multi Frame XL stands for a future-proof, durable and flexible mounting solution of the highest quality.
