Cable trunking, cable duct CK 110 x 60 (per 2 m of trunking). Base perforation with a continuous mounting rail for attaching divider rails. Completely overlapping top section (cover) and base perforation. Tunnel length: 2 mMaterial: PVC - Polyvinyl chlorideFlammability: Flame-retardant, self-extinguishing

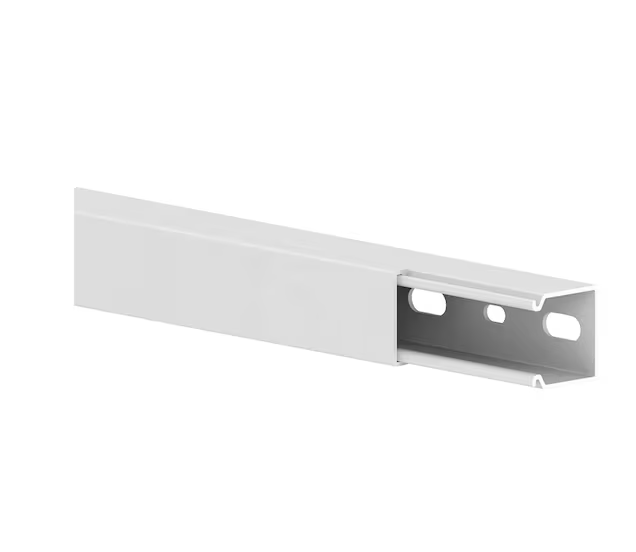

Cable trunking, cable duct LFK 25 x 25 without retaining clips (per 2 m of trunking). Base perforation up to LFK 40 x 40 is single-row, from LFK 40 x 60 it is double-row. From LFK 60 x 60 with a continuous mounting rail for attaching divider rails. Completely overlapping top section (cover) and base perforation. Tunnel length: 2 mMaterial: PVC - Polyvinyl chlorideFlammability: Flame-retardant, self-extinguishing

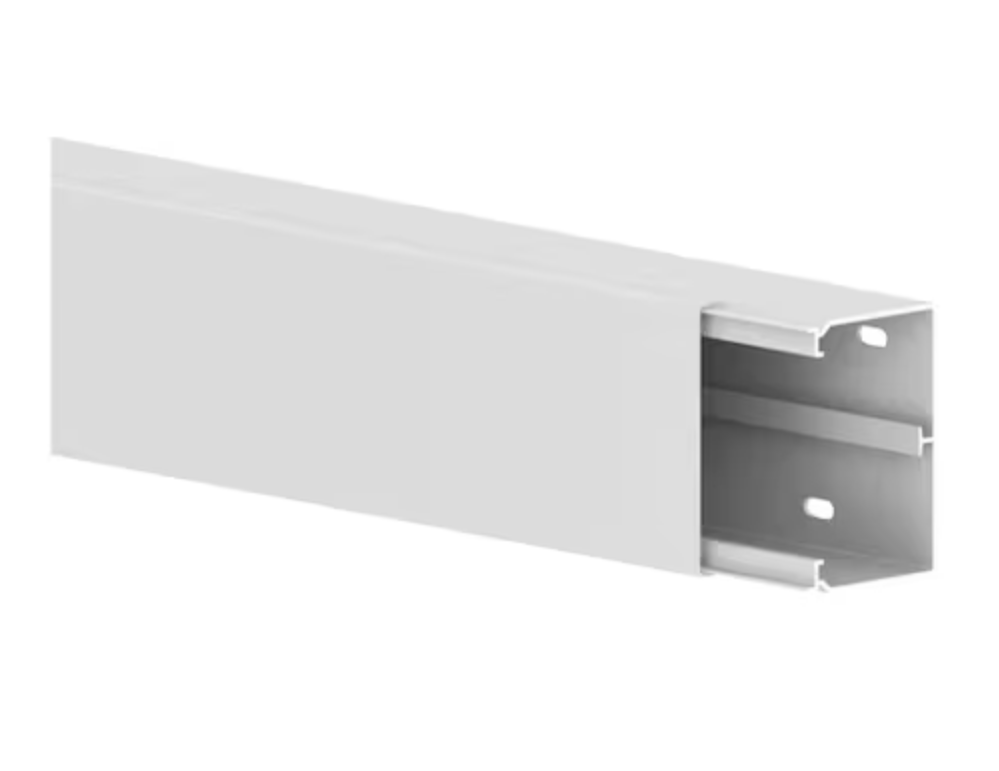

Cable trunking, cable duct LFK 40 x 40 without retaining clips (per 2 m of trunking). Base perforation up to LFK 40 x 40 is single-row, from LFK 40 x 60 it is double-row. From LFK 60 x 60 with a continuous mounting rail for attaching divider rails. Completely overlapping top section (cover) and base perforation. Tunnel length: 2 mMaterial: PVC - Polyvinyl chlorideFlammability: Flame-retardant, self-extinguishing

Cable trunking, cable duct from LFK 40 x 60 including 4 retaining clips (per 2 m of trunking). Base perforation up to LFK 40 x 40 is single-row, from LFK 40 x 60 it is double-row. From LFK 60 x 60 with a continuous mounting rail for attaching divider rails. Completely overlapping top section (cover) and base perforation. Tunnel length: 2 mMaterial: PVC - Polyvinyl chlorideFlammability: Flame-retardant, self-extinguishing

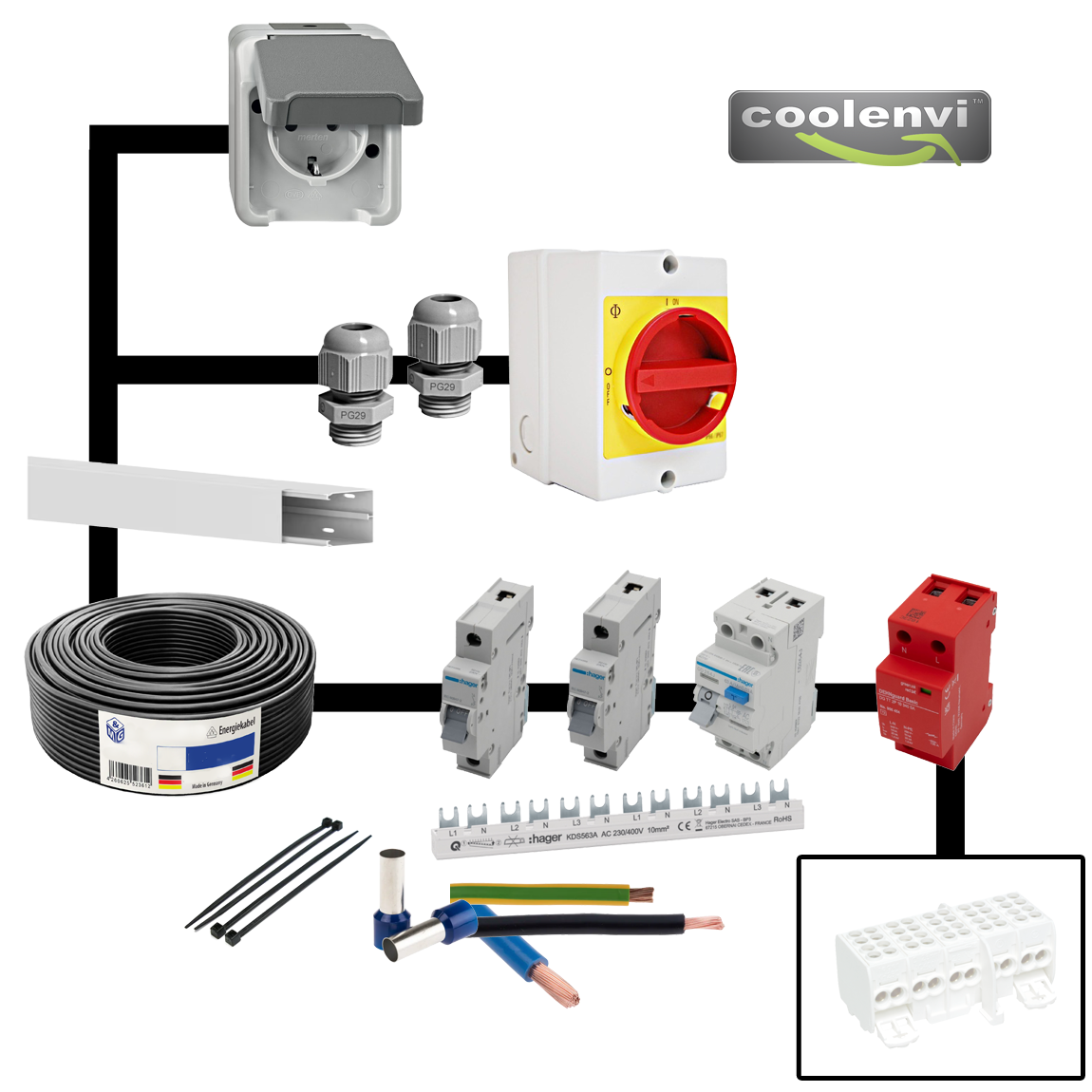

This installation set includes a coordinated material package for the creation of electrical supply lines and protection. Suitable for air conditioning systems, split units, control cabinets or other technical systems with a single-phase 230-volt power supply. The installation SET has been configured for TT systems. A service socket for outdoor maintenance work is included in the set. The set provides all essential installation components typically required for a standards-compliant electrical supply line and device protection. The installation itself is not part of this offer. Installation set variants Variant 1 – Basic installation Material package for a standard installation of electrical supply lines including the necessary protection and maintenance switch. Required space in the existing distribution board: 5 module units for single-phase circuits (230 V) 10 module units in mixed three-phase distribution boards (400 V) Main terminal block with free outgoing capacity for L, N, PE Material package contains up to 16A: DE-HS1003 - Installation cable NYY 3x2.5qmm / electrical supply line DE-UN1000 - H07VK flexible conductor cable black 4 qmm DE-UN1100 - H07VK flexible conductor cable blue 4 qmm DE-UN1200 - H07VK flexible conductor cable green-yellow 4 qmm Various small materials for distribution without terminal block DE-HAGMCB03KA1P16A - miniature circuit breaker 16A (MCB) Material package contains for 20 to 25A: DE-HS1004 - Installation cable NYY 3x4qmm / electrical supply line DE-UN1001 - H07VK flexible conductor cable black 6 qmm DE-UN1101 - H07VK flexible conductor cable blue 6 qmm DE-UN1201 - H07VK flexible conductor cable green-yellow 6 qmm Various small materials for distribution without terminal block DE-HAGMCB06KA1P025A - miniature circuit breaker 25A (MCB) Material package contains for 32A: DE-HS1005 - Installation cable NYY 3x6qmm / electrical supply line DE-UN1002 - H07VK flexible conductor cable black 10 qmm DE-UN1102 - H07VK flexible conductor cable blue 10 qmm DE-UN1202 - H07VK flexible conductor cable green-yellow 10 qmm Various small materials for distribution without terminal block DE-HAGMCB06KA1P032A - miniature circuit breaker 32A (MCB) Material package contains for 40A: DE-HS1006 - Installation cable NYY 3x10qmm / electrical supply line DE-UN1003 - H07VK flexible conductor cable black 16 qmm DE-UN1103 - H07VK flexible conductor cable blue 16 qmm DE-UN1203 - H07VK flexible conductor cable green-yellow 16 qmm Various small materials for distribution without terminal block 0000 - miniature circuit breaker 40A (MCB) Material package contains for 50A: DE-HS1007 - Installation cable NYY 3x16qmm / electrical supply line 0000 - H07VK flexible conductor cable black 25 qmm 0000 - H07VK flexible conductor cable blue 25 qmm 0000 - H07VK flexible conductor cable green-yellow 25 qmm Various small materials for distribution without terminal block 0000 - miniature circuit breaker 50A (MCB) Material package contains for 63A: 0000 - Installation cable NYY 3x25qmm / electrical supply line 0000 - H07VK flexible conductor cable black 35 qmm 0000 - H07VK flexible conductor cable green-yellow 35 qmm 0000 - H07VK flexible conductor cable blue 35 qmm Various small materials for distribution without terminal block 0000 - miniature circuit breaker 63A (MCB) Material package included in all variants: DE-HAGMCB03KA1P16A - miniature circuit breaker 16A (MCB) DE-HAGCD264J - residual current device (RCD) DE-HAGKB263A - Bus Bar 1 pole DK-KG32T20340KL51V - maintenance and repair switch for outdoor units DE-MERT23018029 maintenance / service socket outdoor DK-HAGVZ025M - cable glands DE-WU097364040 - cable protection / cable routing channel with mounting material DE-WU05021413.2 - cable ties fastening material Variant 2 – Installation with 2-pole surge protection Extended material package with additional protection against grid disturbances and voltage spikes. Required space in the existing distribution board: 7 module units for single-phase circuits (230 V) in three-phase distribution boards 12 module units in mixed three-phase distribution boards (400 V) Main terminal block with free outgoing capacity for L, N, PE Material package additionally contains: DE-DEHSPD014-900454 - surge protection (SPD) for network and device protection 2-pole Installation components for integration of surge protection Variant 3 – Installation with 4-pole surge protection Extended material package with additional protection against grid disturbances and voltage spikes. Typical space requirement in the existing distribution board: 12 module units for single-phase circuits (230 V) in three-phase distribution boards 12 module units in mixed three-phase distribution boards (400 V) Main terminal block with free outgoing capacity for L1, L2, L3, N, PE Material package additionally contains: DE-DEHSPD016-952310 - surge protection (SPD) for network and device protection 4-pole Installation components for integration of surge protection Notes on space requirements and installation Before installing this installation set, it must be checked whether the existing distribution cabinet has sufficient space and capacity reserves for the required protection components. The specified module units (TE) serve as a guideline for estimating the required installation space. The installation set is designed for use in TN and TT systems; system-specific connection and installation requirements must be observed. If the available space or capacity reserve is insufficient, installation of a separate small distribution board or sub-distribution board may be required. This material is not included in this installation set. Installation of the included components may only be carried out by qualified electrical professionals in accordance with the applicable electrical safety requirements (5-rule safety principle). The scope of delivery does not include technical fire protection. If required, it must be planned, ordered and installed separately. Typical applications Control cabinets Split air conditioning systems Small heat pumps Ventilation units Technical systems with 230-volt supply NOTE: The product image is not binding and does not represent a claim to the contents of the set. This item is manufactured according to your specifications. Therefore, you have no right of withdrawal and no Coolenvi return policy applies.

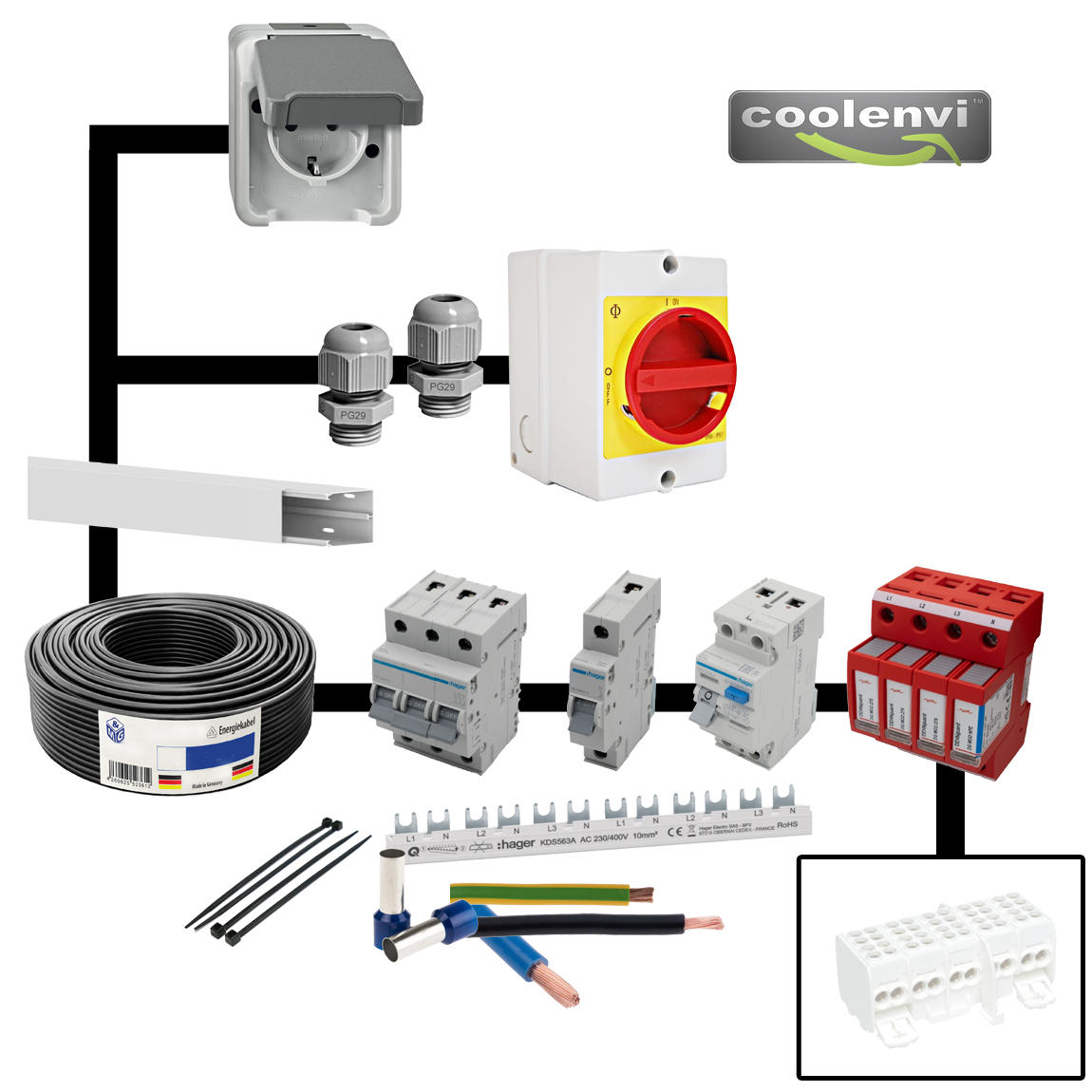

This installation set includes a coordinated material package for the installation of electrical supply lines and circuit protection. Suitable for air conditioners, split units, control panels, or other technical equipment with a 3-phase 400-volt supply. A service socket for outdoor maintenance is included in the set. The set provides all essential installation components typically required for a standard-compliant electrical supply and device protection. The installation itself is not included in this offer. Installation Set Variants Variant 1 – Basic Installation Material package for a standard installation of electrical supply lines including the necessary circuit protection and maintenance switch. Required space in the existing distribution board: 10 TE for 3-phase outputs (400 V) Main terminal block with available outgoing capacity for L1, L2, L3, N, PE Material package includes for 16A: DE-HS1102 - NYY 5x2.5mm² installation cable / electrical supply DE-UN1000 - H07VK flexible conductor black 4 mm² DE-UN1100 - H07VK flexible conductor blue 4 mm² DE-UN1200 - H07VK flexible conductor green-yellow 4 mm² Various small components for distribution without terminal block DE-HAGMCB06KA3P16A - Circuit breaker 16A (MCB) Material package includes for 20–25A: DE-HS1106 - NYY 5x4mm² installation cable / electrical supply DE-UN1001 - H07VK flexible conductor black 6 mm² DE-UN1101 - H07VK flexible conductor blue 6 mm² DE-UN1201 - H07VK flexible conductor green-yellow 6 mm² Various small components for distribution without terminal block DE-HAGMCB06KA1P025A - Circuit breaker 25A (MCB) Material package includes for 32A: DE-HS1107 - NYY 5x6mm² installation cable / electrical supply DE-UN1002 - H07VK flexible conductor black 10 mm² DE-UN1102 - H07VK flexible conductor blue 10 mm² DE-UN1202 - H07VK flexible conductor green-yellow 10 mm² Various small components for distribution without terminal block DE-HAGMCB06KA3P32A - Circuit breaker 32A (MCB) Material package includes for 40A: 0000 - NYY 5x10mm² installation cable / electrical supply DE-UN1003 - H07VK flexible conductor black 16 mm² DE-UN1103 - H07VK flexible conductor blue 16 mm² DE-UN1203 - H07VK flexible conductor green-yellow 16 mm² Various small components for distribution without terminal block DE-HAGMCB06KA3P040A - Circuit breaker 40A (MCB) Material package includes for 50A: 0000 - NYY 3x16mm² installation cable / electrical supply 0000 - H07VK flexible conductor black 25 mm² 0000 - H07VK flexible conductor blue 25 mm² 0000 - H07VK flexible conductor green-yellow 25 mm² Various small components for distribution without terminal block DE-HAGMCB06KA3P050A - Circuit breaker 50A (MCB) Material package includes for 63A: 0000 - NYY 3x25mm² installation cable / electrical supply 0000 - H07VK flexible conductor black 35 mm² 0000 - H07VK flexible conductor green-yellow 35 mm² 0000 - H07VK flexible conductor blue 35 mm² Various small components for distribution without terminal block DE-HAGMCB06KA3P063A - Circuit breaker 63A (MCB) Material package includes in all variants: DE-HS1003 - NYY 3x2.5mm² installation cable / electrical supply DE-HAGMCB03KA1P16A - Circuit breaker 16A (MCB) DE-HAGCD264J - Residual current device (RCD) DE-HAG-KDN380A - 3-pole busbar DK-KG32T20340KL51V - Maintenance and service switch for outdoor devices DE-MERT23018029 - Outdoor maintenance/service socket DK-HAGVZ025M - Cable glands DE-WU097364040 - Cable protection / cable duct with mounting material DE-WU05021413.2 - Cable ties and mounting material Variant 2 – Installation with 4-Pole Surge Protection Extended material package with additional protection against network disturbances and voltage spikes. Typical space requirement in the existing distribution board: 12 TE for 3-phase outputs (400 V) Main terminal block with available outgoing capacity for L1, L2, L3, N, PE Material package additionally includes: DE-DEHSPD016-952310 - Surge protection device (SPD) for network and equipment, 4-pole Installation components for integrating the surge protection Notes on Space Requirement and Installation For using this installation set, ensure that the existing distribution board has sufficient space for the required protection components. The TE (module) values are provided as a guideline to estimate the necessary installation space. If the available space is insufficient, installation of a separate small distribution board or sub-distribution may be required. This material is not included in this installation set. The installation of the included components must only be performed by qualified electrical personnel in compliance with applicable electrical safety regulations. The scope of delivery does not include fire protection. If required, fire protection must be planned and installed separately. Typical Applications Control panels Split air-conditioning units Smaller heat pumps Ventilation units Technical equipment with 230-volt supply NOTE: The product image is not binding and does not represent a claim to the contents of the set. This item is manufactured according to your specifications. Therefore, you have no right of withdrawal and no Coolenvi return policy applies.

DEHNguard TT 2P 5 340 Surge Arrester – Type 2 The DEHNguard TT 2P 5 340 is a modular two-pole surge arrester designed to protect electrical installations against transient overvoltages. The device is classified as a Type 2 SPD according to IEC 61643-11 and is suitable for use in TT and TN systems in a 1+1 configuration. With its compact design of only 2 DIN modules, the surge arrester can be easily installed in distribution boards where space is limited. An integrated fault indication allows quick visual status monitoring. The device is energy-coordinated with arresters from the DEHN Red/Line product series, making it ideal for coordinated lightning and surge protection systems. Product Features Two-pole surge arrester (Type 2 SPD) Suitable for TT and TN systems Compact design – only 2 DIN modules Integrated fault indication Energy-coordinated with DEHN Red/Line arresters High short-circuit strength Technical Data Brand: DEHN Type: DG TT 2P 5 340 SA Part number: 900453 Nominal discharge current (In): 5 kA Max. continuous operating voltage: 340 V AC Protection level: ≤ 1.2 kV Short-circuit withstand capability: 25 kArms Width: 2 DIN modules Degree of protection: IP20 (installed device) Installation Note Installation must only be carried out by a qualified electrician. National installation standards and safety regulations, especially IEC 60364-5-53, must be observed. The device may only be used within the limits specified in the technical documentation.

DEHN DG MD TT Surge Arrester – Type 2 + Type 3 The DEHN DG MD TT FM is a modular surge arrester designed for protecting electrical installations in TT systems (4+0 configuration). The device combines Type 2 and Type 3 surge protection according to EN 61643-11 and is suitable for use in main and sub distribution boards. The compact modular design allows easy installation on DIN rails. An integrated floating remote signalling contact enables convenient monitoring of the device status within building management or monitoring systems. Product Features Modular surge arrester for TT systems (4+0) Combined Type 2 + Type 3 SPD Floating remote signalling contact (changeover) High discharge capacity for reliable protection DIN rail mounting Certified and tested protection device Technical Data Brand: DEHN Type: DG MD TT FM Part number: 952310 GTIN: 4013364108479

H07VK single-core cable for installations in electrical distribution boards or switchgear. PVC material. Cable type: H07VK Insulation: PVC Core color: black Number of cores: 1 core Cross-section: 10.0 mm² Packaging: 100 m ring Note: This item is manufactured according to your specifications. Therefore, you do not have a right of withdrawal and no Coolenvi return policy applies.

H07VK single-core cable for installations in electrical distribution boards or switchgear. PVC material. Cable type: H07VK Insulation: PVC Core color: blue Number of cores: 1 core Cross-section: 10.0 mm² Packaging: 100 m ring Note: This item is manufactured according to your specifications. Therefore, you do not have a right of withdrawal and no Coolenvi return policy applies.

H07VK single-core cable for installations in electrical distribution boards or switchgear. PVC material. Cable type: H07VK Insulation: PVC Core color: green-yellow Number of cores: 1 core Cross-section: 10.0 mm² Packaging: 100 m ring Note: This item is manufactured according to your specifications. Therefore, you do not have a right of withdrawal and no Coolenvi return policy applies.

H07VK single-core cable for installations in electrical distribution boards or switchgear. PVC material. Cable type: H07VK Insulation: PVC Core color: black Number of cores: 1 core Cross-section: 16.0 mm² Packaging: 100 m ring Note: This item is manufactured according to your specifications. Therefore, you do not have a right of withdrawal and no Coolenvi return policy applies.

H07VK single-core cable for installations in electrical distribution boards or switchgear. PVC material. Cable type: H07VK Insulation: PVC Core color: blue Number of cores: 1 core Cross-section: 16.0 mm² Packaging: 100 m ring Note: This item is manufactured according to your specifications. Therefore, you do not have a right of withdrawal and no Coolenvi return policy applies.

H07VK single-core cable for installations in electrical distribution boards or switchgear. PVC material. Cable type: H07VK Insulation: PVC Core color: green-yellow Number of cores: 1 core Cross-section: 16.0 mm² Packaging: 100 m ring Note: This item is manufactured according to your specifications. Therefore, you do not have a right of withdrawal and no Coolenvi return policy applies.

H07VK single-core cable for installations in electrical distribution boards or switchgear. PVC material. Cable type: H07VK Insulation: PVC Core color: black Number of cores: 1 core Cross-section: 4.0 mm² Packaging: 10 m ring Note: This item is manufactured according to your specifications. Therefore, you do not have a right of withdrawal and no Coolenvi return policy applies.

H07VK single-core cable for installations in electrical distribution boards or switchgear. PVC material. Cable type: H07VK Insulation: PVC Core color: blue Number of cores: 1 core Cross-section: 4.0 mm² Packaging: 10 m ring Note: This item is manufactured according to your specifications. Therefore, you do not have a right of withdrawal and no Coolenvi return policy applies.

H07VK single-core cable for installations in electrical distribution boards or switchgear. PVC material. Cable type: H07VK Insulation: PVC Core color: green-yellow Number of cores: 1 core Cross-section: 4.0 mm² Packaging: 10 m ring Note: This item is manufactured according to your specifications. Therefore, you do not have a right of withdrawal and no Coolenvi return policy applies.

H07VK single-core cable for installations in electrical distribution boards or switchgear. PVC material. Cable type: H07VK Insulation: PVC Core color: black Number of cores: 1 core Cross-section: 6.0 mm² Packaging: 10 m ring Note: This item is manufactured according to your specifications. Therefore, you do not have a right of withdrawal and no Coolenvi return policy applies.

H07VK single-core cable for installations in electrical distribution boards or switchgear. PVC material. Cable type: H07VK Insulation: PVC Core color: blue Number of cores: 1 core Cross-section: 6.0 mm² Packaging: 10 m ring Note: This item is manufactured according to your specifications. Therefore, you do not have a right of withdrawal and no Coolenvi return policy applies.

H07VK single-core cable for installations in electrical distribution boards or switchgear. PVC material. Cable type: H07VK Insulation: PVC Core color: green-yellow Number of cores: 1 core Cross-section: 6.0 mm² Packaging: 10 m ring Note: This item is manufactured according to your specifications. Therefore, you do not have a right of withdrawal and no Coolenvi return policy applies.

1-Pole Busbar with Fork Connection – 80A, 12 Modules This 1-pole busbar with fork connection provides a practical solution for distributing power between modular devices in electrical distribution boards. It enables quick and reliable connection of multiple components. The compact design ensures a clean and organised installation while providing dependable electrical performance for professional electrical systems. 1-pole busbar with fork connection Suitable for compatible modular devices Efficient and reliable power distribution Ideal for electrical distribution boards Technical Data Rated current: 80 A Number of poles: 1 Length: approx. 210 mm Impulse withstand voltage (Uimp): 4500 V Connection cross-section (solid conductor): up to 16 mm² Number of modules: 12

2-Pole Busbar with Fork Connection – 80A, 12 Modules This 2-pole busbar with fork connection offers an efficient solution for distributing power between modular devices in electrical distribution boards. It enables quick and reliable connection of multiple components. The compact design supports a clean and organised installation while ensuring dependable electrical performance in professional electrical systems. 2-pole busbar with fork connection Suitable for compatible modular devices Reliable and efficient power distribution Ideal for electrical distribution boards Technical Data Rated current: 80 A Number of poles: 2 Length: approx. 210 mm Impulse withstand voltage (Uimp): 4500 V Connection cross-section (solid conductor): up to 16 mm² Number of modules: 12

3-Pole Busbar with Fork Connection – 80A, 12 Modules This 3-pole busbar with fork connection provides a practical solution for distributing power between modular devices in electrical distribution boards. It enables quick and reliable connection of multiple components. The compact design ensures a clean and organised installation while providing dependable electrical performance for professional electrical systems. 3-pole busbar with fork connection Suitable for compatible modular devices Efficient and reliable power distribution Ideal for electrical distribution boards Technical Data Rated current: 80 A Number of poles: 3 Length: approx. 210 mm Impulse withstand voltage (Uimp): 4500 V Connection cross-section (solid conductor): up to 16 mm² Number of modules: 12

1-Pole Miniature Circuit Breaker (MCB) B-Curve – 6 kA, 230/400 V This 1-pole miniature circuit breaker (MCB) provides reliable protection against overload and short circuits in residential, commercial and light industrial electrical installations. Designed for distribution boards with DIN-rail mounting, it is suitable for single-phase circuits and available in current ratings from 6 A to 25 A, making it ideal for universal use across a wide range of applications. The device features a B-tripping characteristic for standard protection of lighting and socket circuits and offers a rated short-circuit breaking capacity of 6 kA according to IEC 60898-1. Robust screw terminals with high clamping capacity ensure secure wiring and support both solid and flexible conductors. Key Features Miniature circuit breaker for overload and short-circuit protection 1-pole design for single-phase circuits Rated current range: 6–25 A B-curve tripping characteristic Short-circuit breaking capacity: 6 kA (IEC 60898-1) Suitable for residential, commercial and light industrial installations DIN-rail mounting with 1 module width Reliable screw terminal connections Energy limitation class 3 Technical Specifications Rated operational voltage (Ue): 230 / 400 V AC Rated insulation voltage (Ui): 500 V Impulse withstand voltage (Uimp): 4 kV Frequency: 50 / 60 Hz Connection type: Screw terminals Conductor cross-section solid: 1 – 35 mm² Conductor cross-section flexible: 1 – 25 mm² Ingress protection: IP20 Operating temperature: −25 °C to +70 °C Power loss at rated current: approx. 2.44 W Dimensions Height: 83 mm Width: 17.5 mm (1 module) Depth: 70 mm This compact and durable circuit breaker ensures safe and dependable circuit protection while maintaining easy installation and compatibility with standard modular distribution systems.

1-Pole Miniature Circuit Breaker (MCB) B-Curve – 6 kA, 230/400 V This 1-pole miniature circuit breaker (MCB) provides reliable protection against overload and short circuits in residential, commercial and light industrial electrical installations. Designed for distribution boards with DIN-rail mounting, it is suitable for single-phase circuits and available in current ratings from 6 A to 25 A, making it ideal for universal use across a wide range of applications. The device features a B-tripping characteristic for standard protection of lighting and socket circuits and offers a rated short-circuit breaking capacity of 6 kA according to IEC 60898-1. Robust screw terminals with high clamping capacity ensure secure wiring and support both solid and flexible conductors. Key Features Miniature circuit breaker for overload and short-circuit protection 1-pole design for single-phase circuits Rated current range: 6–25 A B-curve tripping characteristic Short-circuit breaking capacity: 6 kA (IEC 60898-1) Suitable for residential, commercial and light industrial installations DIN-rail mounting with 1 module width Reliable screw terminal connections Energy limitation class 3 Technical Specifications Rated operational voltage (Ue): 230 / 400 V AC Rated insulation voltage (Ui): 500 V Impulse withstand voltage (Uimp): 4 kV Frequency: 50 / 60 Hz Connection type: Screw terminals Conductor cross-section solid: 1 – 35 mm² Conductor cross-section flexible: 1 – 25 mm² Ingress protection: IP20 Operating temperature: −25 °C to +70 °C Power loss at rated current: approx. 2.44 W Dimensions Height: 83 mm Width: 17.5 mm (1 module) Depth: 70 mm This compact and durable circuit breaker ensures safe and dependable circuit protection while maintaining easy installation and compatibility with standard modular distribution systems.

3-Pole Miniature Circuit Breaker for Three-Phase Circuits This 3-pole miniature circuit breaker provides reliable protection against overload and short-circuit conditions in three-phase electrical installations. It is suitable for use in residential, commercial and light industrial environments. The compact modular design allows easy installation in standard distribution boards and switchboards. The durable construction ensures dependable operation and long service life. Typical applications include power distribution systems, machinery connections, workshops and building electrical infrastructure. 3-pole circuit breaker for three-phase circuits Protection against overload and short circuit Suitable for residential, commercial and industrial installations Compact modular design for distribution boards Durable housing and reliable switching performance Easy installation in electrical distribution systems

1-Pole Miniature Circuit Breaker (MCB) B-Curve – 6 kA, 230/400 V This 1-pole miniature circuit breaker (MCB) provides reliable protection against overload and short circuits in residential, commercial and light industrial electrical installations. Designed for distribution boards with DIN-rail mounting, it is suitable for single-phase circuits and available in current ratings from 6 A to 25 A, making it ideal for universal use across a wide range of applications. The device features a B-tripping characteristic for standard protection of lighting and socket circuits and offers a rated short-circuit breaking capacity of 6 kA according to IEC 60898-1. Robust screw terminals with high clamping capacity ensure secure wiring and support both solid and flexible conductors. Key Features Miniature circuit breaker for overload and short-circuit protection 1-pole design for single-phase circuits Rated current range: 6–25 A B-curve tripping characteristic Short-circuit breaking capacity: 6 kA (IEC 60898-1) Suitable for residential, commercial and light industrial installations DIN-rail mounting with 1 module width Reliable screw terminal connections Energy limitation class 3 Technical Specifications Rated operational voltage (Ue): 230 / 400 V AC Rated insulation voltage (Ui): 500 V Impulse withstand voltage (Uimp): 4 kV Frequency: 50 / 60 Hz Connection type: Screw terminals Conductor cross-section solid: 1 – 35 mm² Conductor cross-section flexible: 1 – 25 mm² Ingress protection: IP20 Operating temperature: −25 °C to +70 °C Power loss at rated current: approx. 2.44 W Dimensions Height: 83 mm Width: 17.5 mm (1 module) Depth: 70 mm This compact and durable circuit breaker ensures safe and dependable circuit protection while maintaining easy installation and compatibility with standard modular distribution systems.

3-Pole Miniature Circuit Breaker for Three-Phase Circuits This 3-pole miniature circuit breaker provides reliable protection against overload and short-circuit conditions in three-phase electrical installations. It is suitable for use in residential, commercial and light industrial environments. The compact modular design allows easy installation in standard distribution boards and switchboards. The durable construction ensures dependable operation and long service life. Typical applications include power distribution systems, machinery connections, workshops and building electrical infrastructure. 3-pole circuit breaker for three-phase circuits Protection against overload and short circuit Suitable for residential, commercial and industrial installations Compact modular design for distribution boards Durable housing and reliable switching performance Easy installation in electrical distribution systems

1-Pole Miniature Circuit Breaker (MCB) B-Curve – 6 kA, 230/400 V This 1-pole miniature circuit breaker (MCB) provides reliable protection against overload and short circuits in residential, commercial and light industrial electrical installations. Designed for distribution boards with DIN-rail mounting, it is suitable for single-phase circuits and available in current ratings from 6 A to 25 A, making it ideal for universal use across a wide range of applications. The device features a B-tripping characteristic for standard protection of lighting and socket circuits and offers a rated short-circuit breaking capacity of 6 kA according to IEC 60898-1. Robust screw terminals with high clamping capacity ensure secure wiring and support both solid and flexible conductors. Key Features Miniature circuit breaker for overload and short-circuit protection 1-pole design for single-phase circuits Rated current range: 6–25 A B-curve tripping characteristic Short-circuit breaking capacity: 6 kA (IEC 60898-1) Suitable for residential, commercial and light industrial installations DIN-rail mounting with 1 module width Reliable screw terminal connections Energy limitation class 3 Technical Specifications Rated operational voltage (Ue): 230 / 400 V AC Rated insulation voltage (Ui): 500 V Impulse withstand voltage (Uimp): 4 kV Frequency: 50 / 60 Hz Connection type: Screw terminals Conductor cross-section solid: 1 – 35 mm² Conductor cross-section flexible: 1 – 25 mm² Ingress protection: IP20 Operating temperature: −25 °C to +70 °C Power loss at rated current: approx. 2.44 W Dimensions Height: 83 mm Width: 17.5 mm (1 module) Depth: 70 mm This compact and durable circuit breaker ensures safe and dependable circuit protection while maintaining easy installation and compatibility with standard modular distribution systems.

3-Pole Miniature Circuit Breaker for Three-Phase Circuits This 3-pole miniature circuit breaker provides reliable protection against overload and short-circuit conditions in three-phase electrical installations. It is suitable for use in residential, commercial and light industrial environments. The compact modular design allows easy installation in standard distribution boards and switchboards. The durable construction ensures dependable operation and long service life. Typical applications include power distribution systems, machinery connections, workshops and building electrical infrastructure. 3-pole circuit breaker for three-phase circuits Protection against overload and short circuit Suitable for residential, commercial and industrial installations Compact modular design for distribution boards Durable housing and reliable switching performance Easy installation in electrical distribution systems

1-Pole Miniature Circuit Breaker (MCB) B-Curve – 6 kA, 230/400 V This 1-pole miniature circuit breaker (MCB) provides reliable protection against overload and short circuits in residential, commercial and light industrial electrical installations. Designed for distribution boards with DIN-rail mounting, it is suitable for single-phase circuits and available in current ratings from 6 A to 25 A, making it ideal for universal use across a wide range of applications. The device features a B-tripping characteristic for standard protection of lighting and socket circuits and offers a rated short-circuit breaking capacity of 6 kA according to IEC 60898-1. Robust screw terminals with high clamping capacity ensure secure wiring and support both solid and flexible conductors. Key Features Miniature circuit breaker for overload and short-circuit protection 1-pole design for single-phase circuits Rated current range: 6–25 A B-curve tripping characteristic Short-circuit breaking capacity: 6 kA (IEC 60898-1) Suitable for residential, commercial and light industrial installations DIN-rail mounting with 1 module width Reliable screw terminal connections Energy limitation class 3 Technical Specifications Rated operational voltage (Ue): 230 / 400 V AC Rated insulation voltage (Ui): 500 V Impulse withstand voltage (Uimp): 4 kV Frequency: 50 / 60 Hz Connection type: Screw terminals Conductor cross-section solid: 1 – 35 mm² Conductor cross-section flexible: 1 – 25 mm² Ingress protection: IP20 Operating temperature: −25 °C to +70 °C Power loss at rated current: approx. 2.44 W Dimensions Height: 83 mm Width: 17.5 mm (1 module) Depth: 70 mm This compact and durable circuit breaker ensures safe and dependable circuit protection while maintaining easy installation and compatibility with standard modular distribution systems.

3-Pole Miniature Circuit Breaker for Three-Phase Circuits This 3-pole miniature circuit breaker provides reliable protection against overload and short-circuit conditions in three-phase electrical installations. It is suitable for use in residential, commercial and light industrial environments. The compact modular design allows easy installation in standard distribution boards and switchboards. The durable construction ensures dependable operation and long service life. Typical applications include power distribution systems, machinery connections, workshops and building electrical infrastructure. 3-pole circuit breaker for three-phase circuits Protection against overload and short circuit Suitable for residential, commercial and industrial installations Compact modular design for distribution boards Durable housing and reliable switching performance Easy installation in electrical distribution systems

3-Pole Miniature Circuit Breaker for Three-Phase Circuits This 3-pole miniature circuit breaker provides reliable protection against overload and short-circuit conditions in three-phase electrical installations. It is suitable for use in residential, commercial and light industrial environments. The compact modular design allows easy installation in standard distribution boards and switchboards. The durable construction ensures dependable operation and long service life. Typical applications include power distribution systems, machinery connections, workshops and building electrical infrastructure. 3-pole circuit breaker for three-phase circuits Protection against overload and short circuit Suitable for residential, commercial and industrial installations Compact modular design for distribution boards Durable housing and reliable switching performance Easy installation in electrical distribution systems

3-Pole Miniature Circuit Breaker for Three-Phase Circuits This 3-pole miniature circuit breaker provides reliable protection against overload and short-circuit conditions in three-phase electrical installations. It is suitable for use in residential, commercial and light industrial environments. The compact modular design allows easy installation in standard distribution boards and switchboards. The durable construction ensures dependable operation and long service life. Typical applications include power distribution systems, machinery connections, workshops and building electrical infrastructure. 3-pole circuit breaker for three-phase circuits Protection against overload and short circuit Suitable for residential, commercial and industrial installations Compact modular design for distribution boards Durable housing and reliable switching performance Easy installation in electrical distribution systems

3-Pole Miniature Circuit Breaker for Three-Phase Circuits This 3-pole miniature circuit breaker provides reliable protection against overload and short-circuit conditions in three-phase electrical installations. It is suitable for use in residential, commercial and light industrial environments. The compact modular design allows easy installation in standard distribution boards and switchboards. The durable construction ensures dependable operation and long service life. Typical applications include power distribution systems, machinery connections, workshops and building electrical infrastructure. 3-pole circuit breaker for three-phase circuits Protection against overload and short circuit Suitable for residential, commercial and industrial installations Compact modular design for distribution boards Durable housing and reliable switching performance Easy installation in electrical distribution systems

Hager Residual Current Circuit Breaker (RCD / RCCB) – Single-phase and Three-phase Hager residual current circuit breakers provide reliable protection for people and electrical installations against dangerous earth fault currents. An RCD continuously monitors the electrical current in the circuit and disconnects the power supply automatically when a leakage current is detected. These devices are suitable for both single-phase and three-phase electrical systems and are widely used in residential, commercial and industrial installations. Hager products are known for their durability, safety and consistent performance. Designed for modern distribution boards, Hager RCDs offer a compact and reliable solution for professional electrical protection. Their robust design ensures long-term safety and dependable operation. Reliable protection against earth leakage currents Suitable for single-phase and three-phase systems Ideal for residential, commercial and industrial installations Compact design for distribution boards Trusted quality from Hager

Hager Residual Current Circuit Breaker (RCD / RCCB) – Single-phase and Three-phase Hager residual current circuit breakers provide reliable protection for people and electrical installations against dangerous earth fault currents. An RCD continuously monitors the electrical current in the circuit and disconnects the power supply automatically when a leakage current is detected. These devices are suitable for both single-phase and three-phase electrical systems and are widely used in residential, commercial and industrial installations. Hager products are known for their durability, safety and consistent performance. Designed for modern distribution boards, Hager RCDs offer a compact and reliable solution for professional electrical protection. Their robust design ensures long-term safety and dependable operation. Reliable protection against earth leakage currents Suitable for single-phase and three-phase systems Ideal for residential, commercial and industrial installations Compact design for distribution boards Trusted quality from Hager

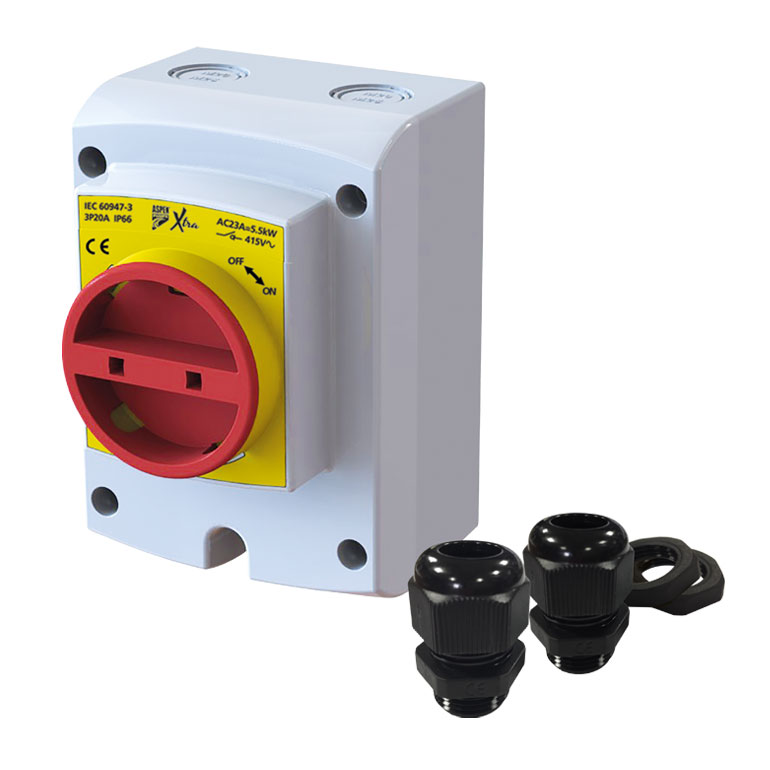

Polycarbonate Enclosed Isolator Switch - High impact grey polycarbonate enclosure, UV stabilised to IP66/67 Low profile red/yellow operating handle integral with enclosure cover Lockable with up to three padlocks in the OFF position; lid interlocked in the ON position Earth terminal included Nominal switching voltage 690 V NoteStated motor rating, Util. Cat. AC23A/AC3 is for a 3 phase 380/440 V supply. StandardsEN60947, VDE 0660, EN 60204

The Merten Aquastar IP44 surface-mounted socket is designed for installations in damp or demanding environments. Its weather-resistant housing made of elastic plastic and stainless external metal components ensure excellent durability. The socket features removable bases that allow quick and convenient wiring while remaining securely fixed in the housing. The Schuko socket can also be labelled using a label insert. This reliable outlet is ideal for basements, garages, workshops and protected outdoor installations where high resistance and safety are required. Product Features Robust surface-mounted socket from the Merten Aquastar IP44 range IP44 protection – splash-proof design Removable bases for easy installation Large wiring space for loop-through wiring (up to 5 x 2.5 mm²) Diagonal mounting holes for secure fixing Label field insert available for identification Suitable for basements, garages, workshops and damp rooms Technical Specifications ManufacturerMerten ModelMEG2301-8029 EAN4042811179717 Product TypeSchuko socket outlet ConfigurationSingle outlet SeriesAquastar Mounting TypeSurface-mounted Connection TypeConnection terminals according to VDE 0620 Part 1 Rated VoltageAC 250 V Rated Current16 A Housing ColourLight grey (similar to RAL 7035) MaterialThermoplastic, external metal parts stainless Halogen-freeYes Dimensions (W x H x D)approx. 73 x 83 x 57 mm Protection RatingIP44

NYY-J heavy-duty underground cable. Rated voltage 600/1000 volts, according to VDE 0276-603. For permanent installation indoors, outdoors, in concrete, soil, and water.Underground cable NYY-J 3x10 mm²Cable type: NYY-JInsulation: PVCCore colors: brown - black - gray - blue - green/yellowNumber of cores: 3-coreCross-section: 10.0 mm²Sheath: PVC, blackRated voltage U0/U: 600 / 1000 VOuter diameter: 15.0 mmPackaging: 100 m ring

NYY-J heavy-duty underground cable. Rated voltage 600/1000 volts, according to VDE 0276-603. For permanent installation indoors, outdoors, in concrete, soil, and water.Underground cable NYY-J 3x16 mm²Cable type: NYY-JInsulation: PVCCore colors: brown - black - gray - blue - green/yellowNumber of cores: 3-coreCross-section: 16.0 mm²Sheath: PVC, blackRated voltage U0/U: 600 / 1000 VOuter diameter: 15.0 mmPackaging: 100 m ring

NYY-J heavy-duty underground cable. Rated voltage 600/1000 volts, according to VDE 0276-603. For permanent installation indoors, outdoors, in concrete, soil, and water.Underground cable NYY-J 3x2.5 mm²Cable type: NYY-JInsulation: PVCCore colors: brown - black - gray - blue - green/yellowNumber of cores: 3-coreCross-section: 2.5 mm²Sheath: PVC, blackRated voltage U0/U: 600 / 1000 VOuter diameter: 15.0 mmPackaging: 50 m ring

NYY-J heavy-duty underground cable. Rated voltage 600/1000 volts, according to VDE 0276-603. For permanent installation indoors, outdoors, in concrete, soil, and water.Underground cable NYY-J 3x4 mm²Cable type: NYY-JInsulation: PVCCore colors: brown - black - gray - blue - green/yellowNumber of cores: 3-coreCross-section: 4.0 mm²Sheath: PVC, blackRated voltage U0/U: 600 / 1000 VOuter diameter: 15.0 mmPackaging: 100 m ring

NYY-J heavy-duty underground cable. Rated voltage 600/1000 volts, according to VDE 0276-603. For permanent installation indoors, outdoors, in concrete, soil, and water.Underground cable NYY-J 3x6 mm²Cable type: NYY-JInsulation: PVCCore colors: brown - black - gray - blue - green/yellowNumber of cores: 3-coreCross-section: 6.0 mm²Sheath: PVC, blackRated voltage U0/U: 600 / 1000 VOuter diameter: 15.0 mmPackaging: 100 m ring

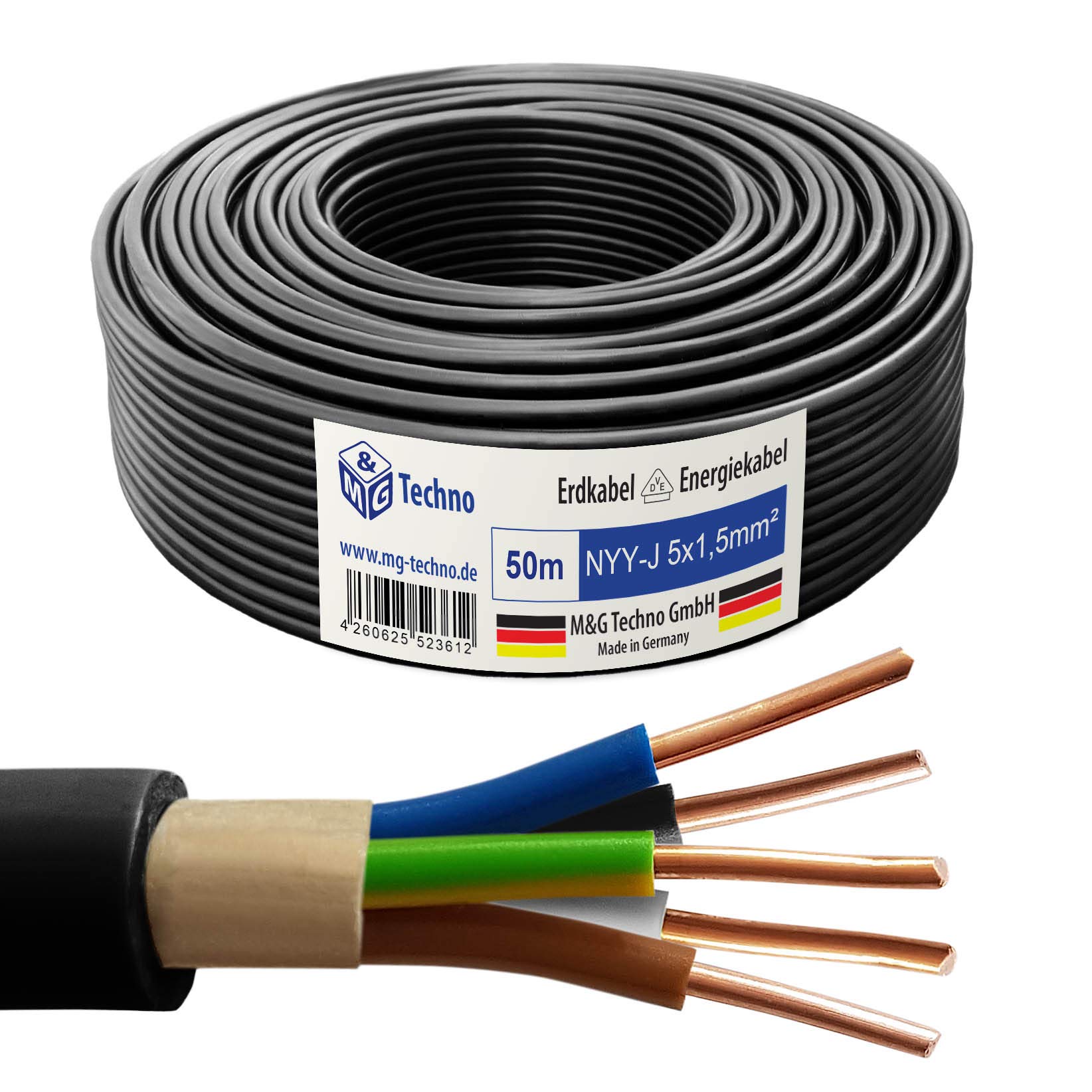

NYY-J heavy-duty underground cable. Rated voltage 600/1000 volts, according to VDE 0276-603. For permanent installation indoors, outdoors, in concrete, soil, and water.Underground cable NYY-J 5x1.5 mm²Cable type: NYY-JInsulation: PVCCore colors: brown - black - gray - blue - green/yellowNumber of cores: 5-coreCross-section: 1.5 mm²Sheath: PVC, blackRated voltage U0/U: 600 / 1000 VOuter diameter: 13.0 mmPackaging: 50 m ring

NYY-J heavy-duty underground cable. Rated voltage 600/1000 volts, according to VDE 0276-603. For permanent installation indoors, outdoors, in concrete, soil, and water.Underground cable NYY-J 5x2.5 mm²Cable type: NYY-JInsulation: PVCCore colors: brown - black - gray - blue - green/yellowNumber of cores: 5-coreCross-section: 2.5 mm²Sheath: PVC, blackRated voltage U0/U: 600 / 1000 VOuter diameter: 15.0 mmPackaging: 50 m ring

NYY-J heavy-duty underground cable. Rated voltage 600/1000 volts, according to VDE 0276-603. For permanent installation indoors, outdoors, in concrete, soil, and water.Underground cable NYY-J 5x4 mm²Cable type: NYY-JInsulation: PVCCore colors: brown - black - gray - blue - green/yellowNumber of cores: 5-coreCross-section: 4.0 mm²Sheath: PVC, blackRated voltage U0/U: 600 / 1000 VOuter diameter: 15.0 mmPackaging: 50 m ring

NYY-J heavy-duty underground cable. Rated voltage 600/1000 volts, according to VDE 0276-603. For permanent installation indoors, outdoors, in concrete, soil, and water.Underground cable NYY-J 5x6 mm²Cable type: NYY-JInsulation: PVCCore colors: brown - black - gray - blue - green/yellowNumber of cores: 5-coreCross-section: 6.0 mm²Sheath: PVC, blackRated voltage U0/U: 600 / 1000 VOuter diameter: 15.0 mmPackaging: 50 m ring

Reliable cable tie for quickly organizing and bundling cables and wires. Material: PA 6.6 - PolyamideTemperature resistance min./max.: -40 to 85 °CApplication temperature min./max.: -10 to 85 °CSilicone-free: YesHalogen-free: YesPackaging unit: 100 pieces
