Microgrid XS – Compact Energy System up to 5 kVA
R 460 562,40*
Content:
1 System/s
Available, delivery time: November - April
Product number:
ZA-95300
Product information "Microgrid XS – Compact Energy System up to 5 kVA"

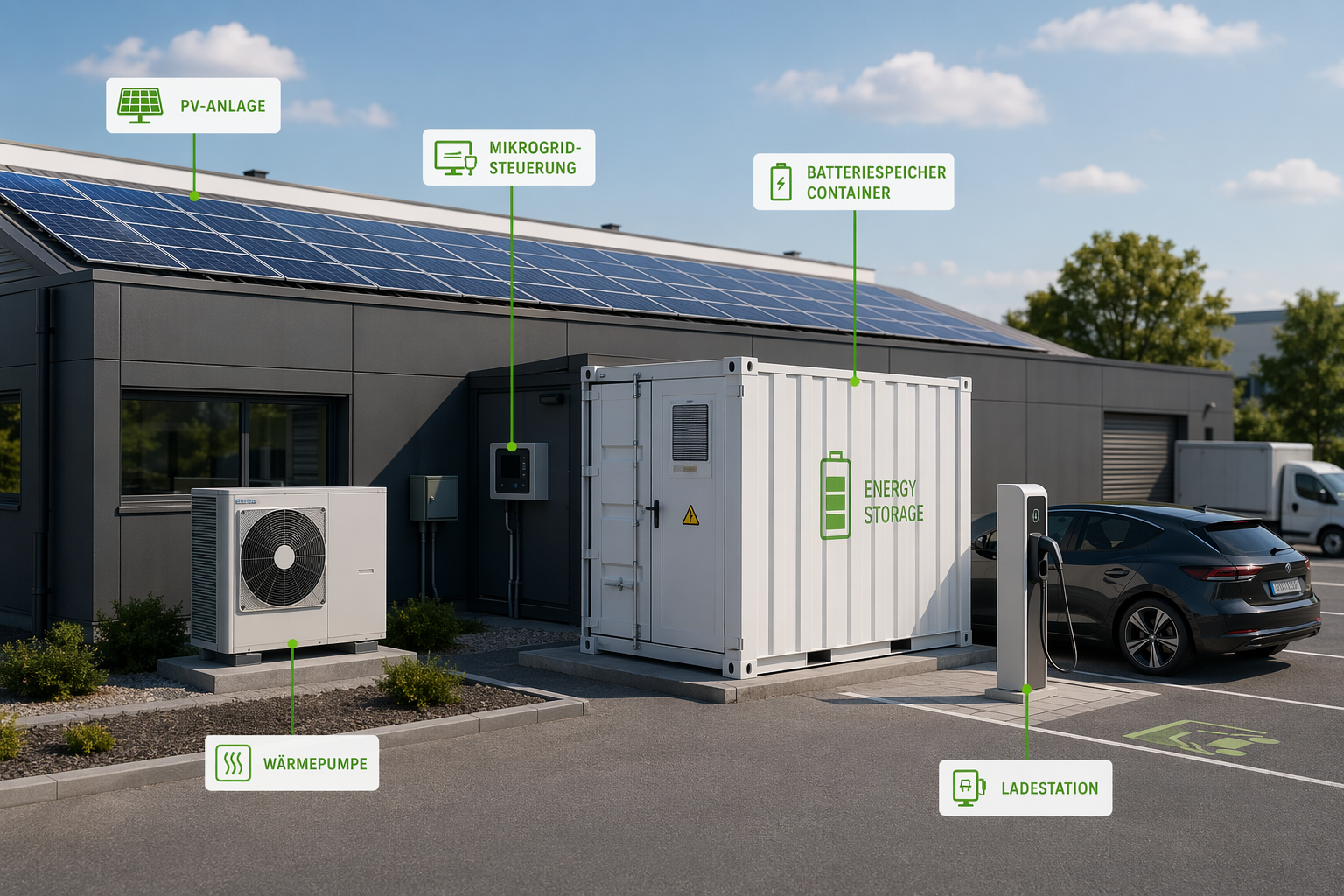

The Microgrid XS is a modular, scalable energy system for the generation, storage and conversion of electrical energy for buildings and sites. It forms a technically coordinated unit consisting of photovoltaic generation, battery storage and energy conversion.
The system is designed for a maximum connection capacity of up to 5 kVA and optimized for stable low-load operation.
Depending on project-specific design, the microgrid system can be configured as an off-grid system (autonomous supply) or as a grid-connected energy system with optional feed-in capability.

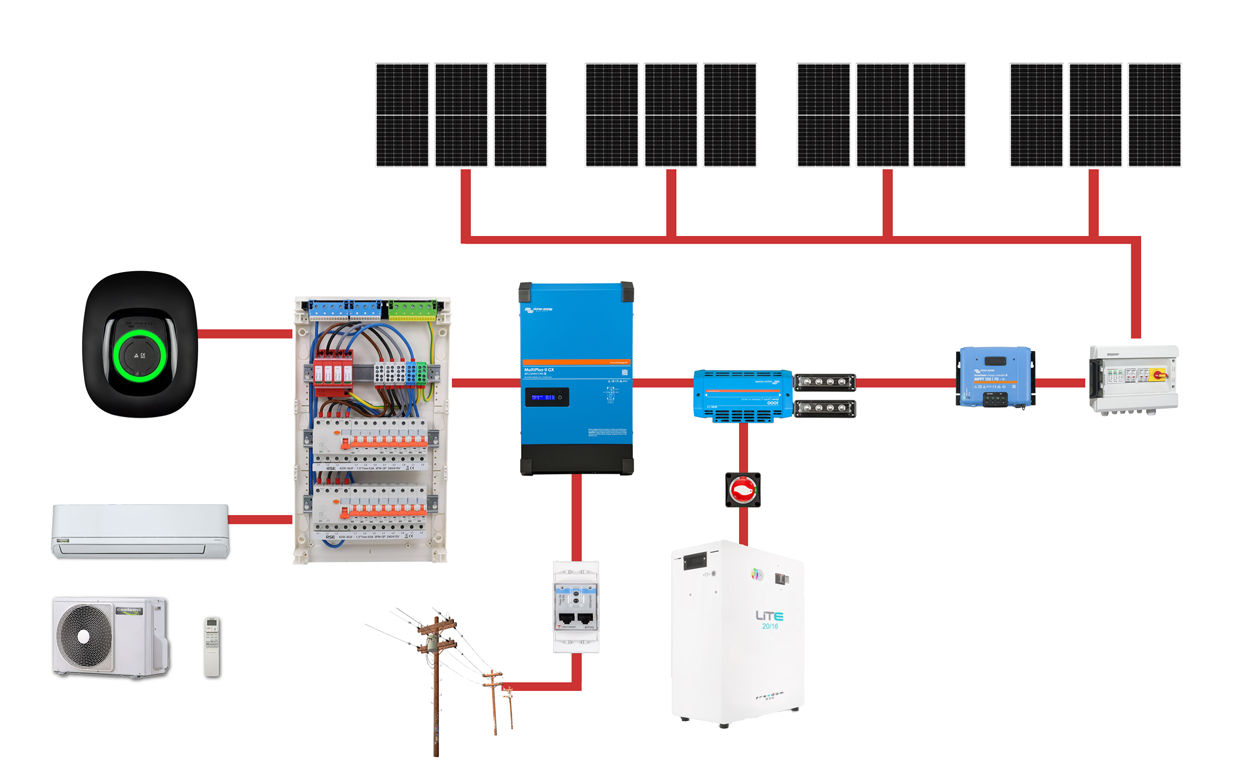

Included in the system (core scope)
- Photovoltaic-based energy generation
- Battery storage system for energy storage and load optimization
- Energy conversion and system control (inverter / energy management)
- Coordination of all core components within the defined system boundary (up to 5 kVA)
Not included in the base system
- Building internal electrical distribution outside the microgrid system
- Heat pumps, heating or HVAC systems
- Electric vehicle charging infrastructure
- Consumer or building technology integration
Optional extensions (project-specific)
- Integration of EV charging stations with intelligent load management
- Connection of heat pump or HVAC systems
- Grid-connected system configuration including feed-in management
These extensions are not part of the base system and require separate technical design and project planning.
Project and system definition
The system is based on project-specific configuration and standardized technical parameters. Dimensioning is based on customer-provided information.
Once technical planning begins, the system becomes customer-specific. Cancellation after planning start is excluded.
Images are for illustrative purposes only and do not represent the full scope of supply or project.
| MG - Estimated Installation Area Battery System (m²/Battery): | 1.5 / 1 |
|---|---|
| MG - Installed PV DC Power (kWp): | 4.50 |
| MG - Number of PV Modules: | 9 |
| MG - PV Module Type: | Monocrystalline |
| MG - Nominal DC Power per PV Module (Wp): | 500 |
| MG - Battery DC Voltage Range (V): | 52 |
| MG - Battery DC Nominal Energy Capacity (kWh): | 10 |
| MG - Battery DC Usable Energy Capacity (kWh): | 8 |
| MG - Battery Chemistry: | LFP |
| MG - Number of DC Batteries: | 1 |
| MG - Nominal AC Voltage (V/Ph/Hz): | 230 / 1 / 50 |
| MG - Maximum AC Output Current per Phase (A): | 20 |
| MG - Maximum AC Output Power per Phase (kW): | 4.0 |
| MG - Number of Inverters: | 1 |
| MG - Estimated Installation Area PV-Array (m²/Panels): | 41 / 9 |
| MG - EV Charging Connection Preparation: | Yes |
| MG - EV Charging Maximum Capacity (kW / Phases): | 1.38 / 1 |
| MG - Heat Pump Connection Preparation: | Yes |
| MG - Heat Pump Maximum Capacity (kW / Phases): | 0.9 / 1 |
