MIDEA Inverter 4-way Cassette SET 5.3kW / 18000 BTU Heat Pump
Product number:
ZA-R32MICAS18-CSTR32MICOND18-BZETMBQ403.1
EAN:
MD18CSTBZEQ4R32
Product information "MIDEA Inverter 4-way Cassette SET 5.3kW / 18000 BTU Heat Pump"

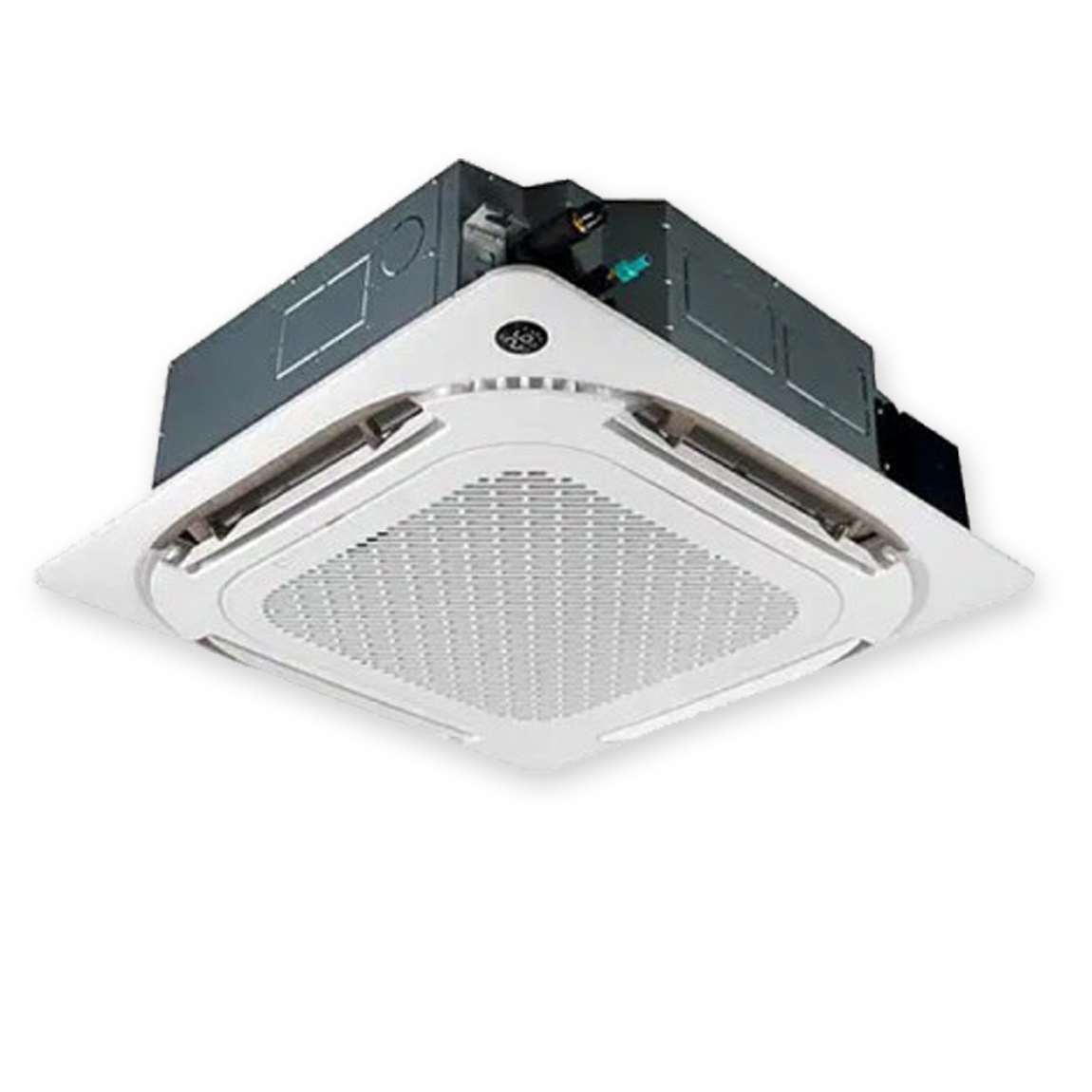

Midea MICAS-18 4-Way Ceiling Cassette with Panel T-MBQ4-03 | 5.3 kW | for rooms 50 – 60 m²
The Midea MICAS-18 4-way ceiling cassette is a powerful and efficient air conditioning solution designed for rooms of approximately 50 to 60 m². It is ideal for offices, retail spaces, medical practices, or residential areas and combines multiple functions in one system: cooling, heating, dehumidification, and air circulation.
Thanks to the 360° airflow distribution, conditioned air is evenly distributed throughout the room, ensuring a comfortable indoor climate without drafts.
Space-Saving Cassette Design
The redesigned 4-way ceiling cassette requires minimal installation height and is therefore suitable for false ceilings with limited space.
The slim T-MBQ4-03 decorative panel integrates seamlessly into the ceiling and distributes air evenly in all directions (360°).
Efficient Mono-Split Operation

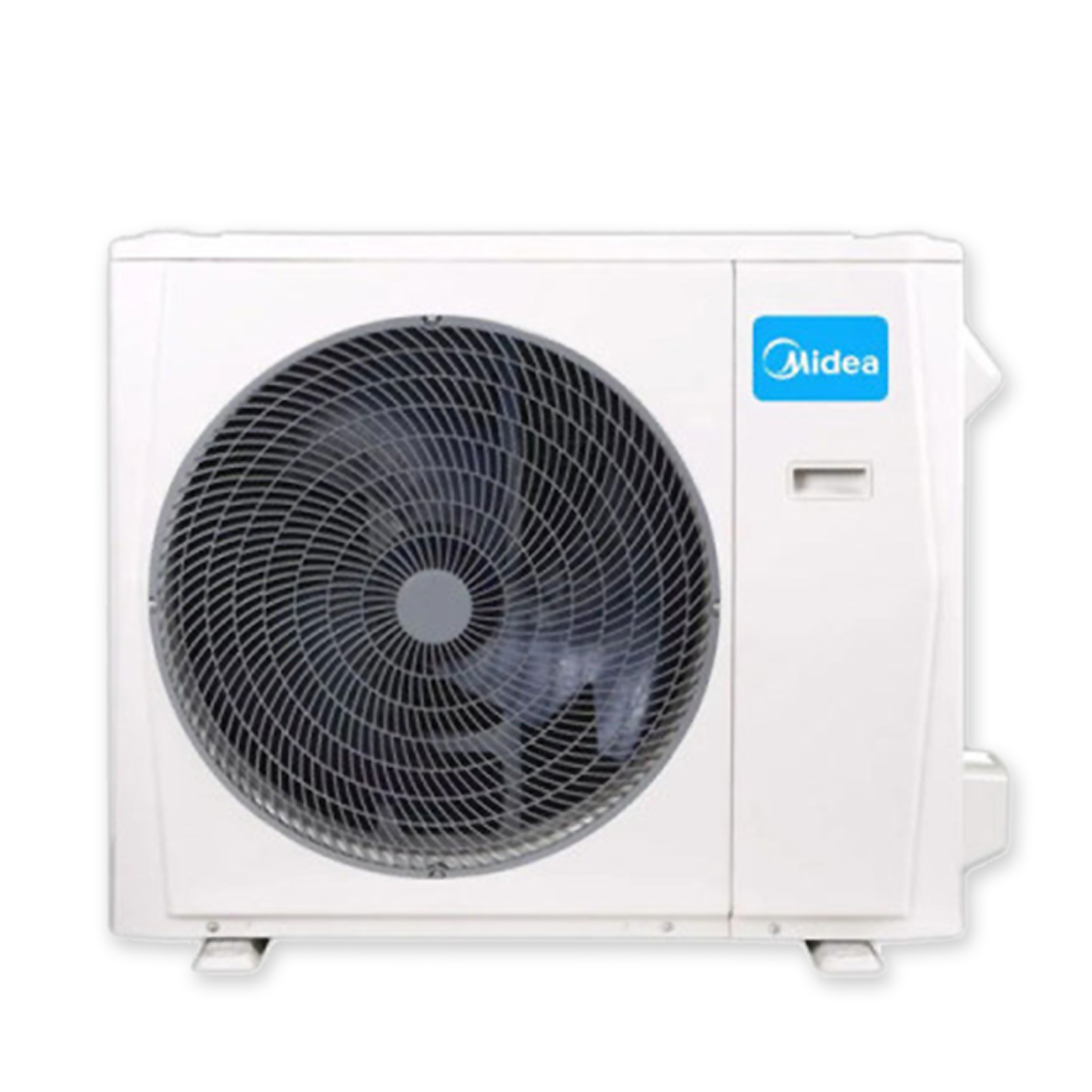

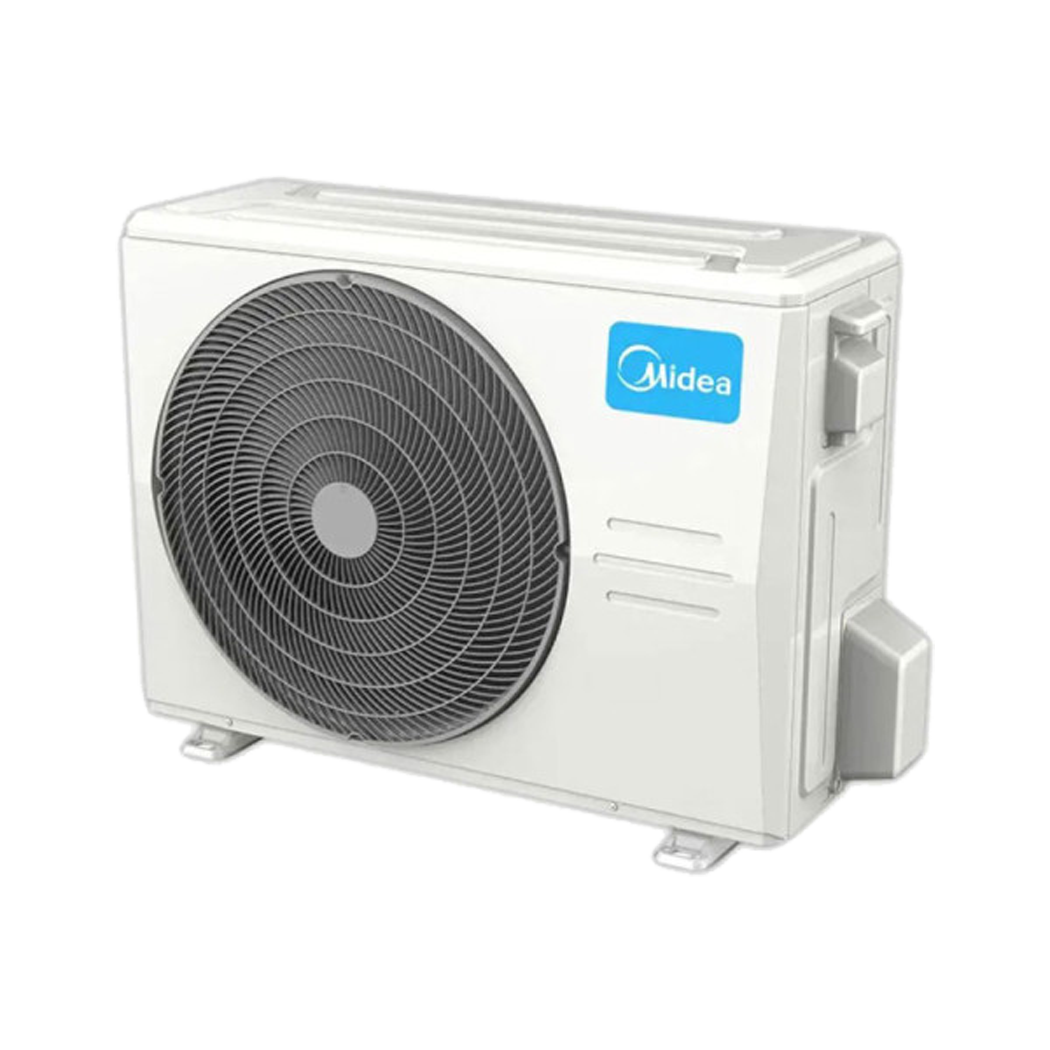

In a mono-split system, the ceiling cassette is connected to a compatible Midea outdoor unit, allowing efficient climate control of a single room.

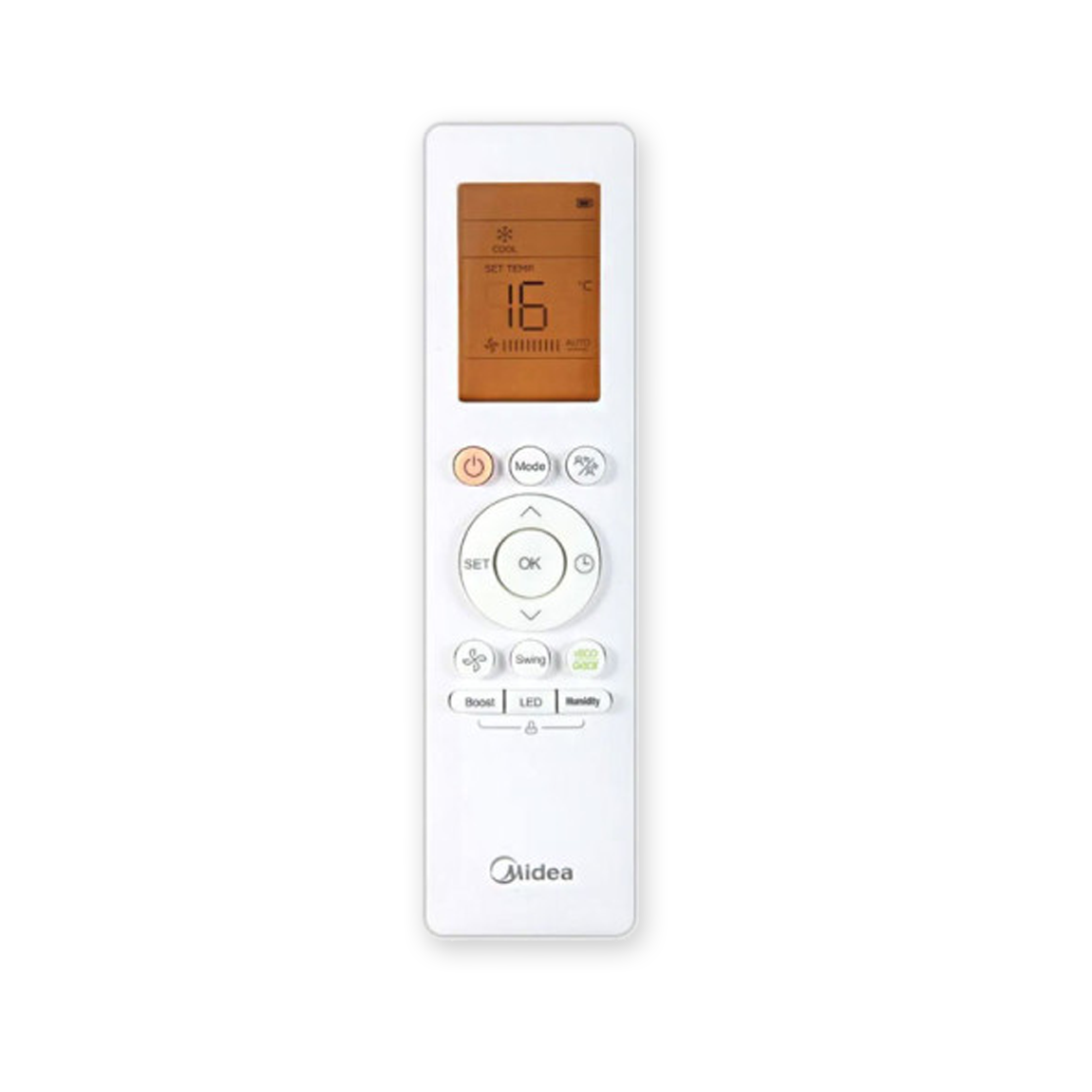

An infrared remote control is included in the delivery.
For commercial or professional installations, optional Midea wired controllers from the 120 series are recommended:
- Type K – Individual control
- Type M – Group control for multiple units
Features & Functions
- 360° Airflow – Even air distribution throughout the room
- Anti-Cold Air Function – Prevents cold airflow when heating starts
- Follow Me Function – Temperature measured via sensor in the remote control
- Automatic Cooling/Heating Mode – Automatically selects the optimal mode
- Built-in Condensate Pump – Pumping height up to 750 mm
- Sleep Mode – Energy-efficient operation during nighttime
- Fresh Air Option – Optional fresh air integration possible
- Louver Memory Function – Louvers return to the last position after restart
Optional Accessories
- Midea 120 Series wired controller (Type K or Type M)
| RI - Design: | White plastic |
|---|---|
| RI - Nominal Cooling Capacity kW / min. - max.: | 5.28 / 2.90 - 5.59 |
| RI - Room Size m² - (kW | BTU): | 50 - (5.0 | 17.000), 55 - (5.5 | 18.770) |
| RI - Temperature Conditions Indoor/Outdoor cooling(heating) °C: | 16 - 30 (0 - 30) / 0 - 50 (-15 - 24) |
| RI - Nominal Heating Capacity kW / min. - max.: | 5.57 / 2.37 - 6.30 |
| RI - Consumption kW max.: | 1.55 |
| RI - Power Supply V/Ph/Hz: | 220-240/1+N/50 |
| RI - Energy Class: | A++ / A+ |
| RI - Sound pressure level dB(A): | I 33 - 37 / O 56 |
| RI - Pipe dimension mm (inch): | 6.3 (¼) / 12.7 (½) |
| RI - Pipe Length (min.-max.) m: | 2 - 25 |
| RI - Height Difference (max.) m: | 10 |
| RI - IU Dimensions (HxWxD) mm: | 50 x 647 x 647 Panel | 260 x 570 x 570 CAS |
| RI - OU Dimensions (HxWxD) mm: | 554 x 805 × 330 |
| RI - Weight IU/OU kg: | I 16.3 / B 2.7 / O 32.5 |
| RI - Refrigerant: | R32 |
