DEHNguard - Surge Arrester SPD 2Pole 20kA 340VAC 900454
Product information "DEHNguard - Surge Arrester SPD 2Pole 20kA 340VAC 900454"
DEHNguard TT 2P 5 340 Surge Arrester – Type 2

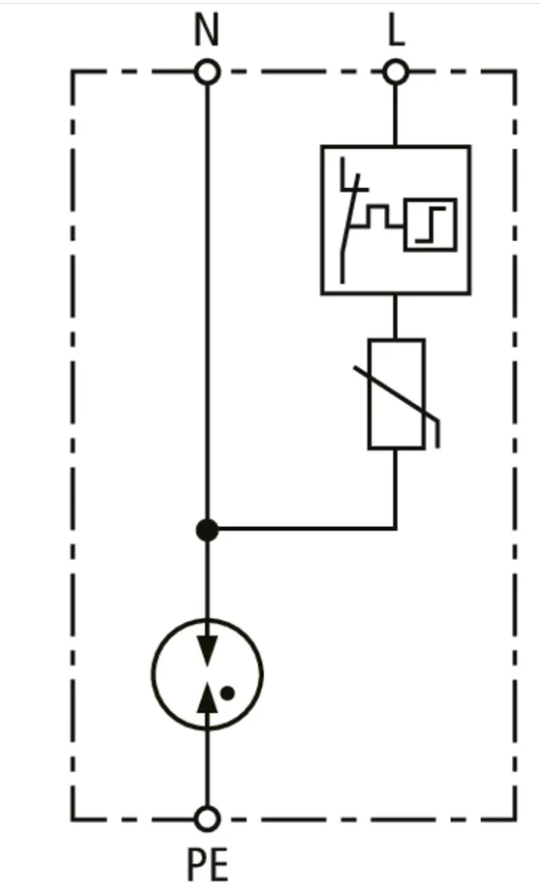

The DEHNguard TT 2P 5 340 is a modular two-pole surge arrester designed to protect electrical installations against transient overvoltages. The device is classified as a Type 2 SPD according to IEC 61643-11 and is suitable for use in TT and TN systems in a 1+1 configuration.
With its compact design of only 2 DIN modules, the surge arrester can be easily installed in distribution boards where space is limited. An integrated fault indication allows quick visual status monitoring. The device is energy-coordinated with arresters from the DEHN Red/Line product series, making it ideal for coordinated lightning and surge protection systems.
Product Features
- Two-pole surge arrester (Type 2 SPD)
- Suitable for TT and TN systems
- Compact design – only 2 DIN modules
- Integrated fault indication
- Energy-coordinated with DEHN Red/Line arresters
- High short-circuit strength
Technical Data
- Brand: DEHN
- Type: DG TT 2P 5 340 SA
- Part number: 900453
- Nominal discharge current (In): 5 kA
- Max. continuous operating voltage: 340 V AC
- Protection level: ≤ 1.2 kV
- Short-circuit withstand capability: 25 kArms
- Width: 2 DIN modules
- Degree of protection: IP20 (installed device)

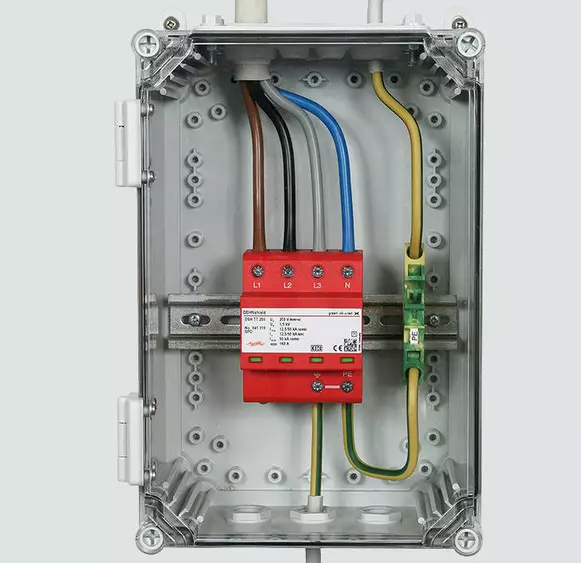

Installation Note
Installation must only be carried out by a qualified electrician. National installation standards and safety regulations, especially IEC 60364-5-53, must be observed. The device may only be used within the limits specified in the technical documentation.
