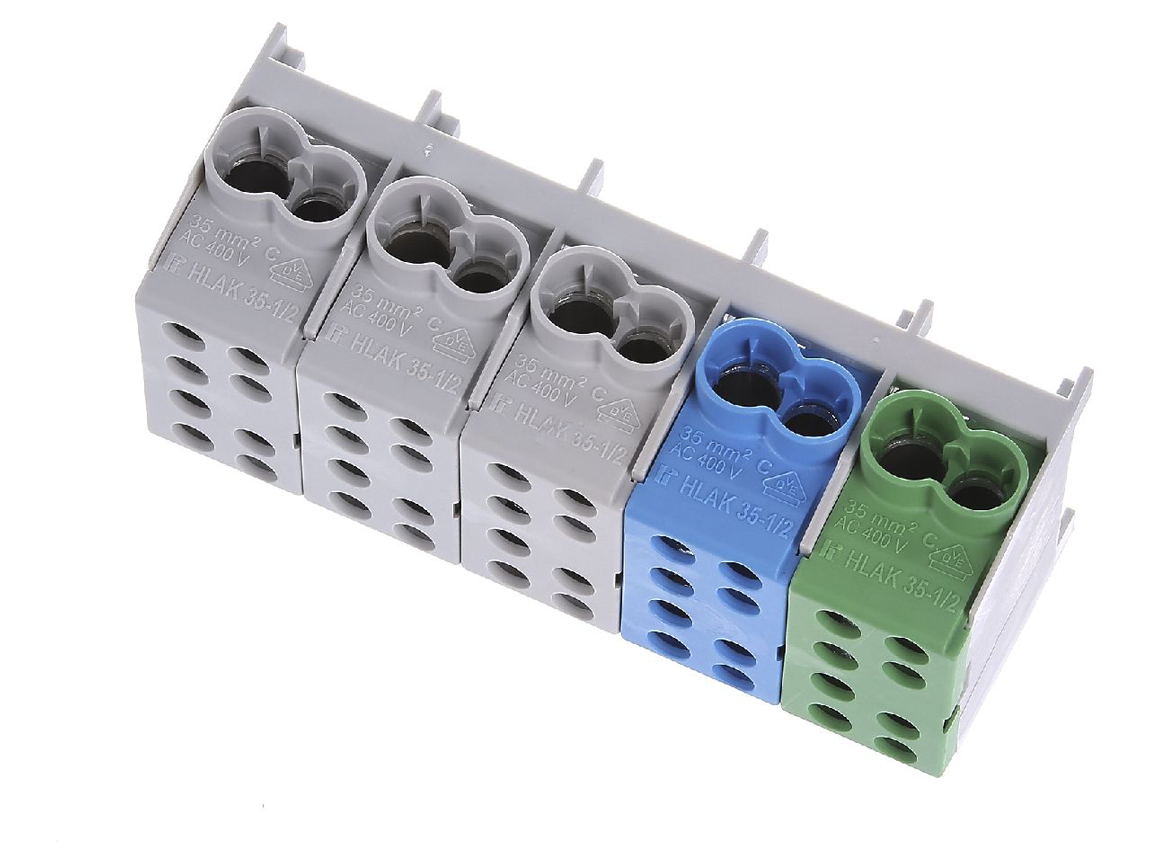

HAGER Main Distribution Terminal Block 5-Pole 2x35mm² KH45A IP20
Product information "HAGER Main Distribution Terminal Block 5-Pole 2x35mm² KH45A IP20"
The HAGER KH45A main distribution terminal block is a 5-pole solution designed for safe and efficient power distribution in electrical installations. It supports conductor cross-sections from 1.5 up to 35 mm² per pole.
The configuration includes 3 phases (L), 1 neutral (N), and 1 protective earth (PE), each with two connection points.
Technical Data
- Number of poles: 5 (3L, N, PE)
- Rated voltage: 400 V
- Rated current: 100 A
- Conductor size: 1.5 – 35 mm²
- Protection class: IP20
- Mounting: snap-on or screw fixing
- Dimensions: 135 × 38 × 53 mm
Advantages
- High connection flexibility
- Compact design
- Reliable electrical contact
- Ideal for distribution boards
| Cable - Core Dimension: | 35.0 mm² |
|---|
