Coolenvi™ SDI-System Ducted Unit – 5.0/5.6 kW A+ Heat Pump
€3,967.38*
% €4,898.00* (19% saved)Available, delivery time: May - October
Product number:
DE-ZT-CESDI0561KAN+A.1
Product information "Coolenvi™ SDI-System Ducted Unit – 5.0/5.6 kW A+ Heat Pump"

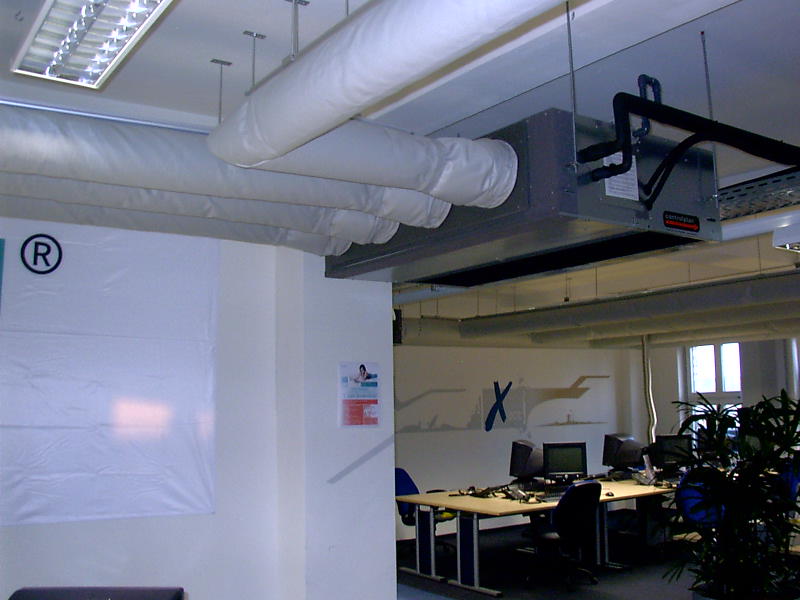

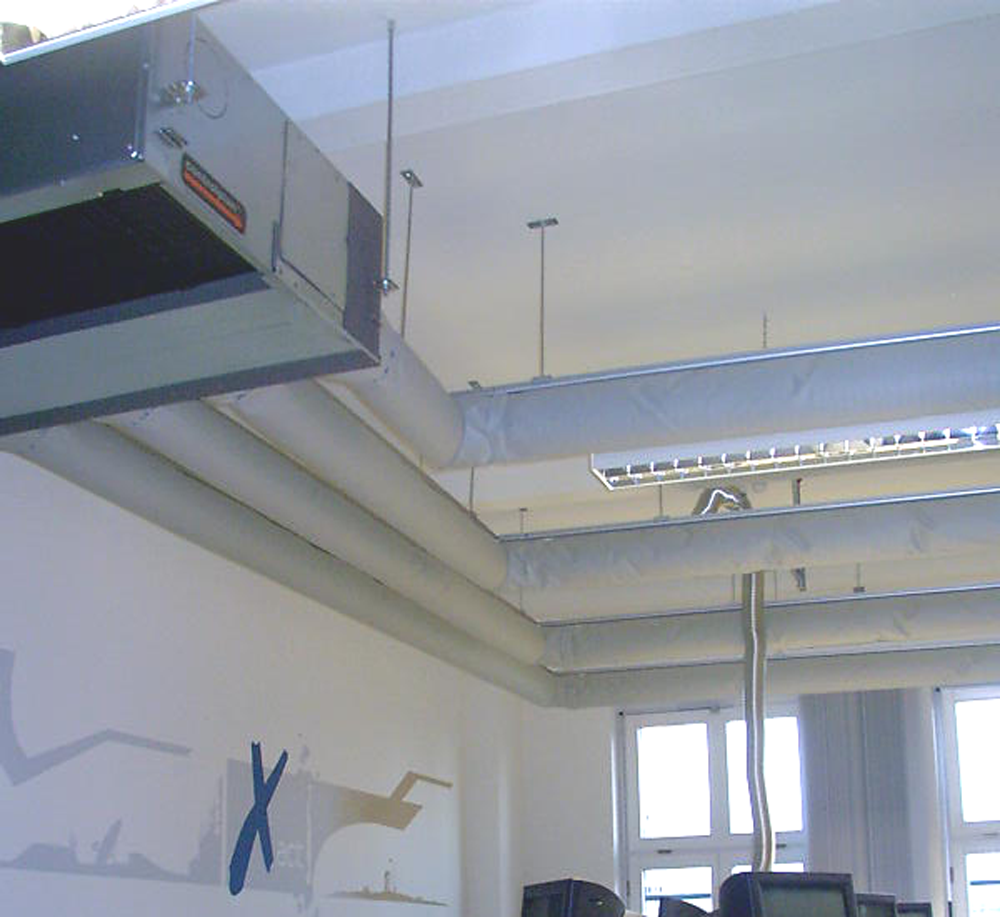

The discreet and highly flexible solution for all applications where optimal air distribution is required. Combine this system with air ducts and standard air outlets or in combination with our textile duct systems, allowing completely draught-free air supply even with ceiling heights of only 2.5 m.
Technically, the units are suitable for air conditioning applications in offices, call centers, production facilities and retail spaces, as well as for technical rooms or for targeted cooling of machines or products. Thanks to the air distribution options, this system provides a basis for year-round temperature control through heating or cooling of residential and commercial buildings.
Included:
Indoor and outdoor unit
The sizes 1101 & 1401 are also compatible with our ventilation systems, enabling perfect supply air distribution via the duct network of the ducted air conditioning unit. Fresh air shares of up to 20% of the total air volume of the ducted unit can be supplied (equivalent to approx. 324 or 396 m³/h). Higher supply air volumes can be supplied to the room autonomously via an optional supply air duct system, taking into account the cooling or heating capacity (additional air conditioning unit).
The advantages in combination with our ventilation systems:
- No complex additional supply air duct distribution
- Optimal coordination of control technology saves money
- High energy recovery efficiency saves energy (compared to free ventilation)
- Significantly increased comfort level due to pleasant air quality
- Full utilization of heat pump heating operation
Add items for complete systems:
48plus warranty extension to 48 months (one-time fee per indoor unit – only in combination with BIMcare™).
Air distribution with filter and air outlets
LCD wired remote controller
Control option signaling module (operation/fault signal and remote on/off) (only in combination with wired remote controller)
Installation SET 3 m / 5 m / 10 m / 15 m or 20 m, consisting of: mounting brackets, connection lines and accessories
GSM KIT remote transmission of SMS notifications
Add services for installation:
Coolenvi – air conditioning installation fixed-price packages
Wall drilling
Electrical connection installation, with safety switch or fuse
Condensate drain installation or pump, funnel siphon, etc.
Ventilation network installation e.g. using air duct components or filter units
Roof work execution, usually with scaffolding, flat roof mounting
Increase of refrigerant charge
Programming of setpoint limitation
Programming automatic restart after power failure
Ideal for:
Offices, retail spaces, restaurants up to 60 m² or IT rooms, server rooms and technical rooms with a maximum sensible cooling capacity of up to 3.6 kW.| SDI - Nominal Cooling Capacity kW: | 5,00 / 1,20 - 5,60 min.-max. |
|---|---|
| SDI - Nominal Heating Capacity kW: | 5,60 / 0,90 - 7,30 min.-max. |
| SDI - Consumption kW: | 0,16/1,39/2,67 |
| SDI - Power Supply V/Ph/Hz: | 220-240/1/50 |
| SDI - Energy Class: | A+ cool / A+ heat |
| SDI - Sound pressure level dB(A): | I 25/29/33 - O 48 |
| SDI - Pipe dimension mm (inch) / m: | 6,4 (¼) - 12,7 (½) / 5 - 50 |
| SDI - Pipe Length (min.-max.) m: | 5 - 50 |
| SDI - Height Difference (max.) m: | 30 |
| SDI - IU Dimensions (HxWxD) mm: | 275 x 700 x 750 - KA |
| SDI - OU Dimensions (HxWxD) mm: | 630 x 799 x 299 - 561 |
| SDI - Weight IU/OU kg: | 23 / 45 |
| SDI - Refrigerant: | R32 |
