Coolenvi™ SDI-System 4 Way Ceiling Cassette – 10.0/11.2 kW A+++ Heat Pump
€6,991.92*
% €8,632.00* (19% saved)Available, delivery time: May - October
Product number:
DE-ZT-CE11014WKAS+A.1
Product information "Coolenvi™ SDI-System 4 Way Ceiling Cassette – 10.0/11.2 kW A+++ Heat Pump"
SDI 4-way ceiling cassettes provide a powerful, elegant, and service-friendly solution for air conditioning in commercial, office, and technical spaces with suspended ceilings. From a ceiling height of approx. 3.5 m, they ensure even air distribution in all four directions and deliver high thermal comfort with efficient operation.
Thanks to flush integration into suspended ceilings, room design remains fully flexible: wall surfaces stay clear and usable floor space is optimally preserved. The low installation height of only approx. 26–32 cm allows installation even where ceiling voids are limited. For retrofits, all connection lines can be discreetly routed within the existing ceiling.
For grid ceilings, compact Euro-ceiling variants are also available—depending on unit size—allowing seamless integration into standard ceiling systems. SDI 4-way ceiling cassettes are designed for year-round operation and are also suitable for reliable cooling of IT and technical rooms.
Your benefits at a glance
- Even 4-way air distribution for high room comfort
- Reliable operation down to −15 °C outdoor temperature
- Low installation height of approx. 26–32 cm
- Flexible room layout thanks to free wall and floor areas
- Suitable for IT and technical room cooling
- Control of up to 16 systems with one remote control (depending on the control concept)
- Consistently high energy efficiency (energy class A)
All models feature a modular design and can be individually expanded with comprehensive control, regulation, and monitoring kits.
Add items for complete systems:
48plus warranty extension to 48 months (one-time fee per indoor unit – only in conjunction with BIMcare™).
LCD wired remote controller
Control option signal module (operation/fault indication and remote on/off) (only in conjunction with wired remote controller)
Installation SET 3 m / 5 m / 10 m / 15 m or 20 m, consisting of: mounting brackets, connection lines, and accessories
GSM KIT remote transmission of SMS notifications
Add services for installation:
Coolenvi – air conditioning installation fixed-price packages
Wall drilling
Electrical connection installation, including safety switch or fuse
Condensate drain installation or pump, funnel trap, etc.
Roof works, typically with scaffolding, flat-roof outlet
Increase of refrigerant charge
Programming of setpoint limitation
Programming of automatic restart after power failure
Ideal for:

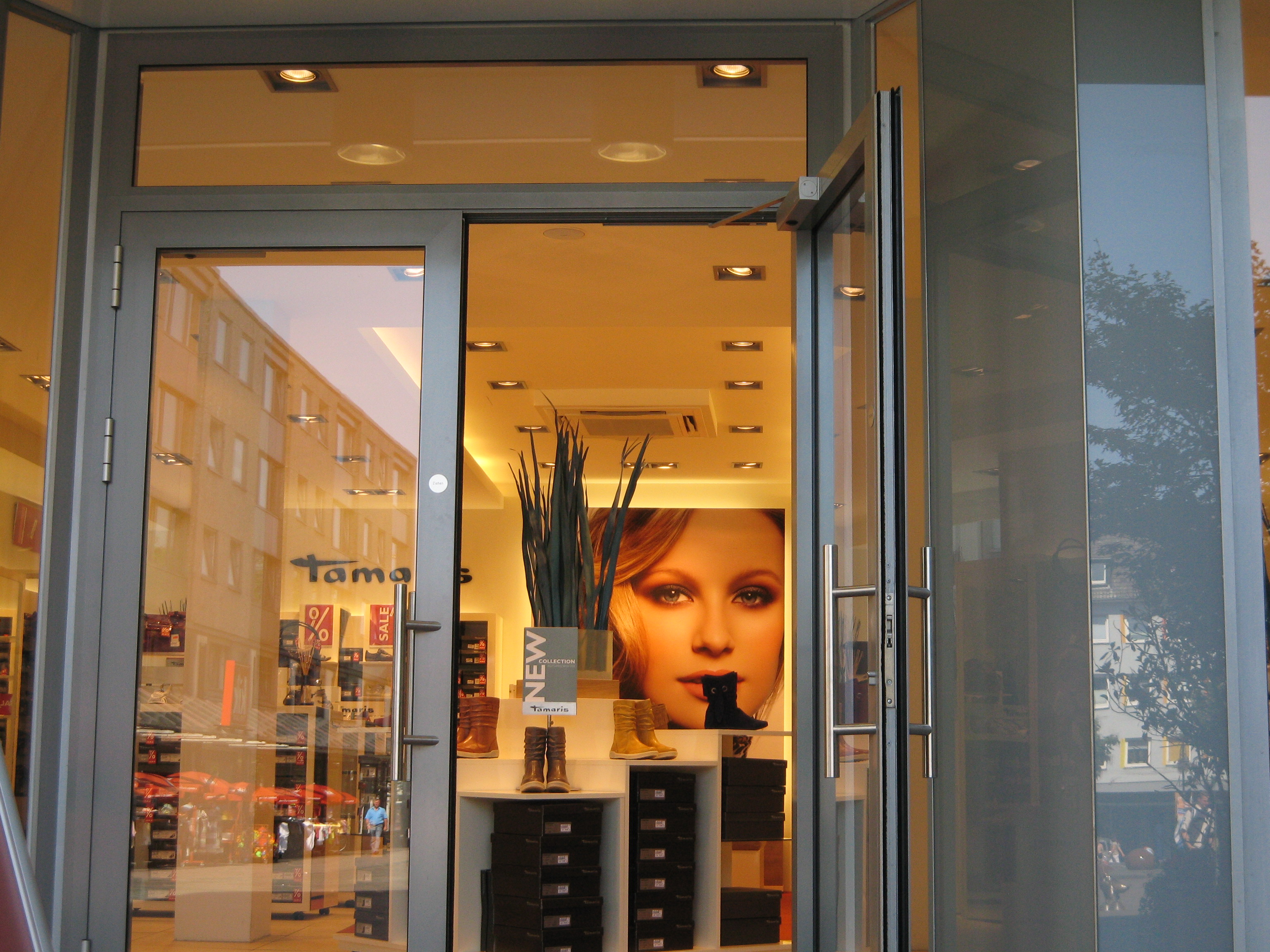

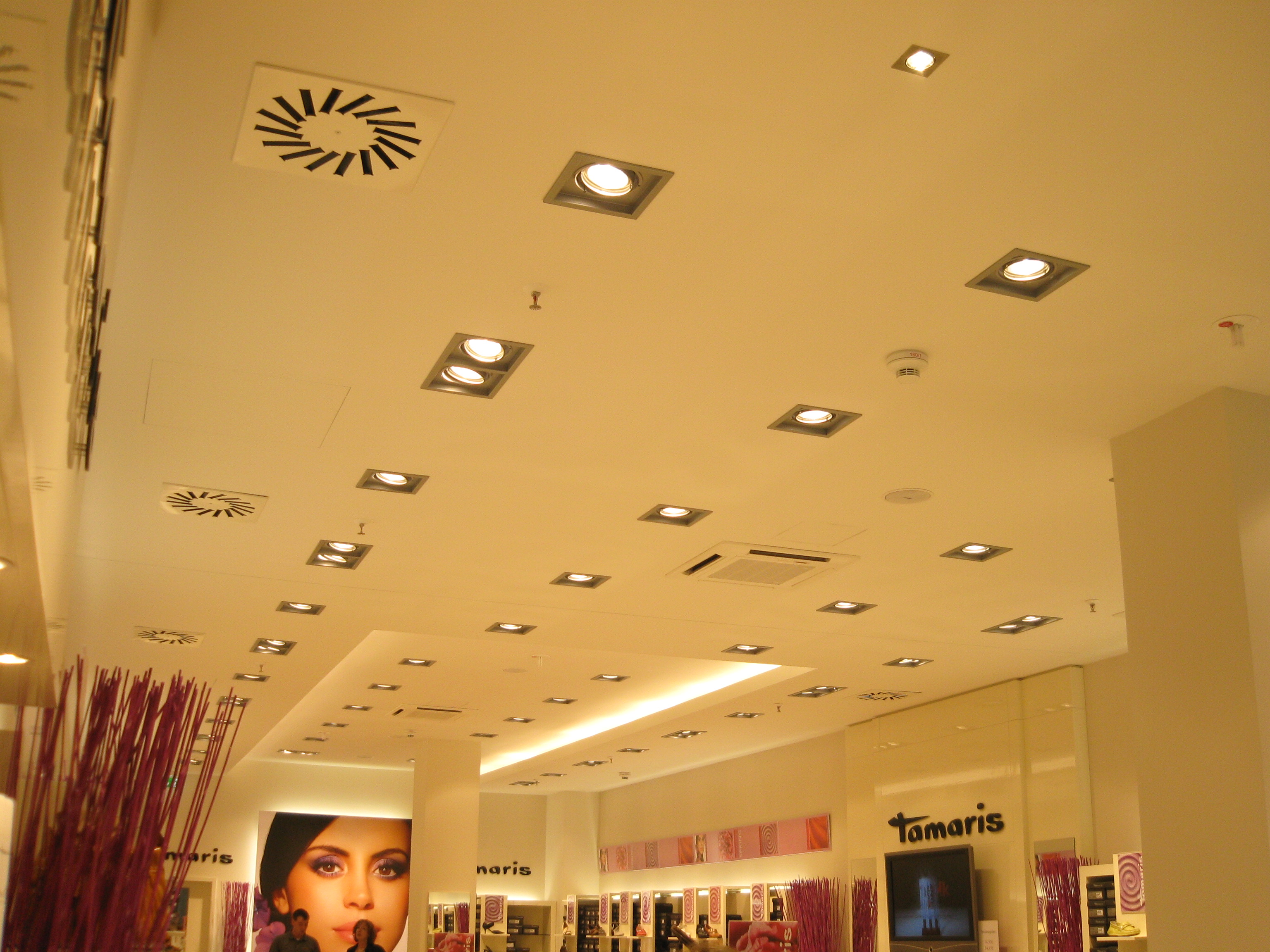

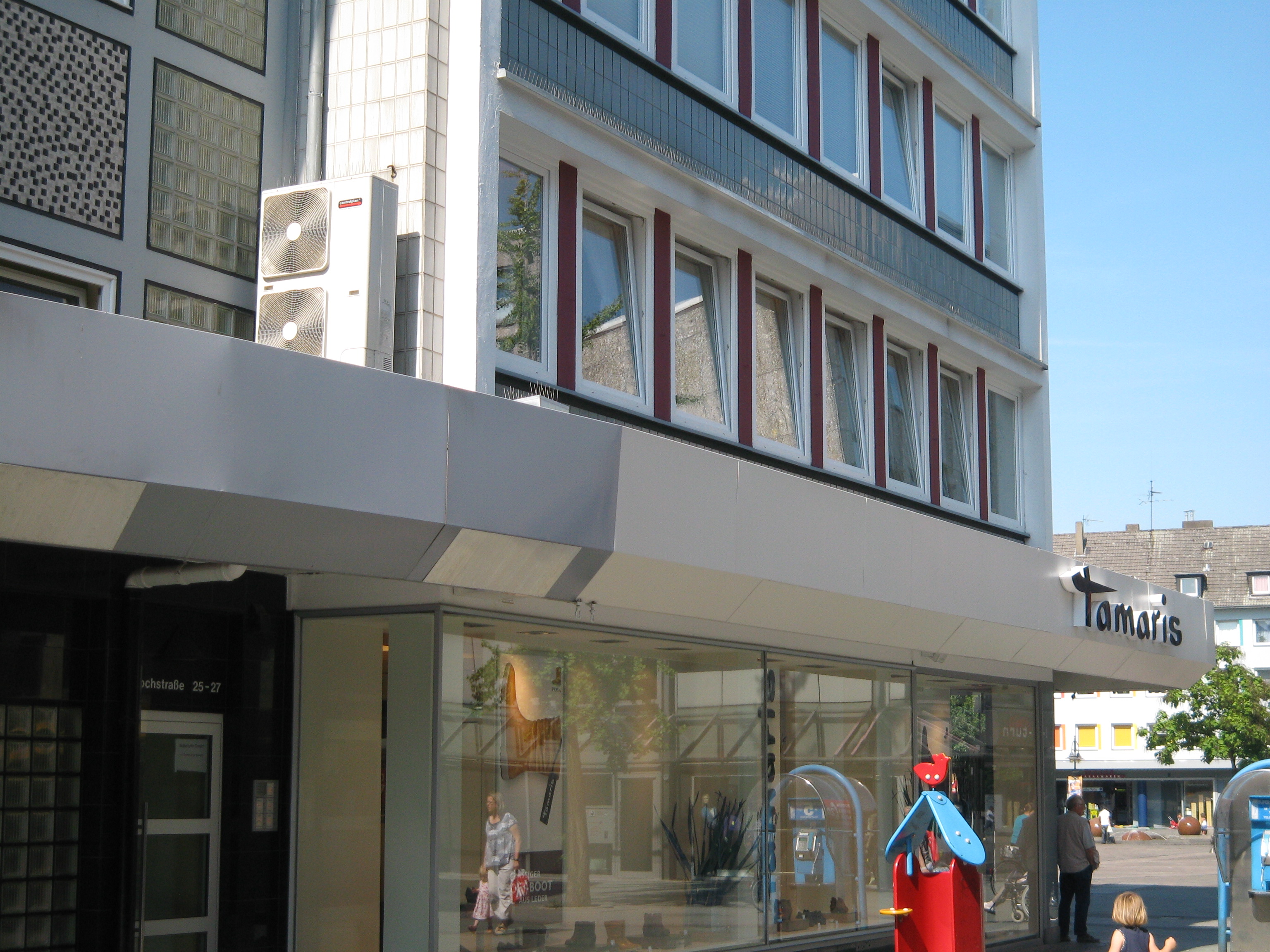

Retail areas, retail stores, supermarkets, grocery markets, checkout zones, open-plan offices, shop premises, chain gastronomy, workshops, small-parts warehouses for sensitive goods, IT departments, small server rooms with limited space up to approx. 150 m², with a maximum sensible cooling capacity of up to 9.0 kW.
| SDI - Nominal Cooling Capacity kW: | 10,00 / 3,10 - 12,00 min.-max. |
|---|---|
| SDI - Nominal Heating Capacity kW: | 11,20 / 3,00 - 13,00 min.-max. |
| SDI - Consumption kW: | 0,41/2,38/3,09 |
| SDI - Power Supply V/Ph/Hz: | 220-240/1/50 |
| SDI - Energy Class: | A+++ cool / A++ heat |
| SDI - Sound pressure level dB(A): | I 32/38/44 - O 50, I 33/38/43 - O 50 |
| SDI - Pipe dimension mm (inch) / m: | 9,5 (3/8) - 15,9 (5/8) / 3 - 50 |
| SDI - Pipe Length (min.-max.) m: | 5 - 75 |
| SDI - Height Difference (max.) m: | 30 |
| SDI - IU Dimensions (HxWxD) mm: | 319 x 840 x 840 (30 x 950 x 950 Panel) |
| SDI - OU Dimensions (HxWxD) mm: | 1550 x 1010 x 370 - 1101 |
| SDI - Weight IU/OU kg: | 30 / 104 |
| SDI - Refrigerant: | R32 |
