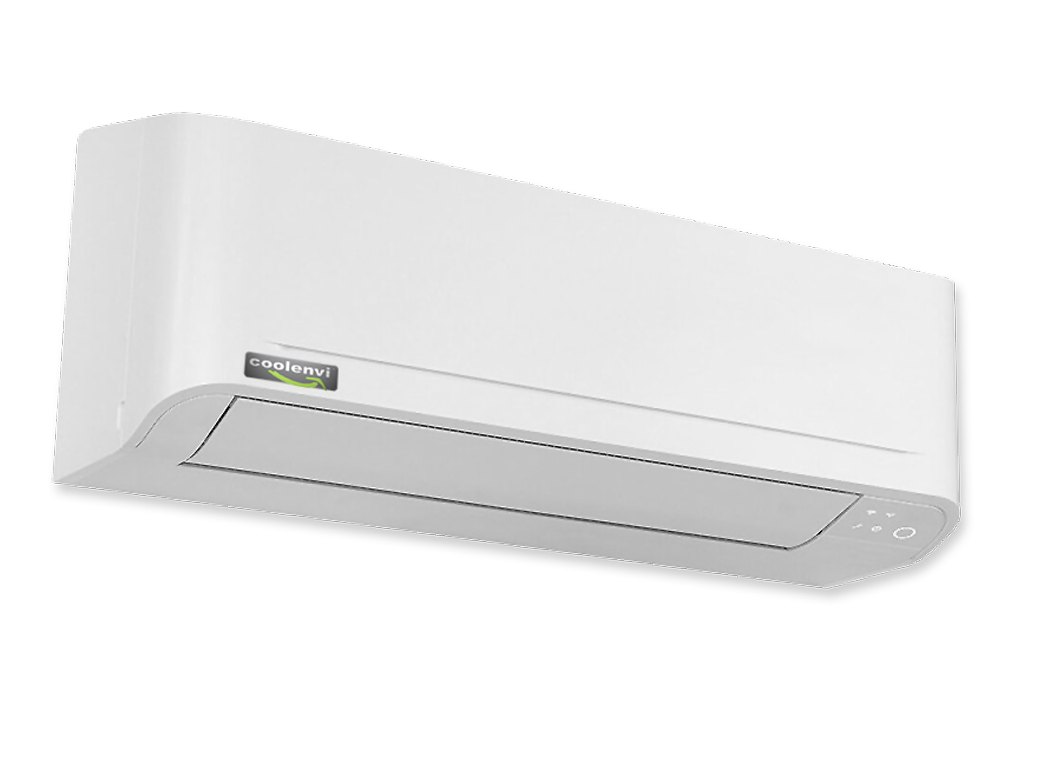

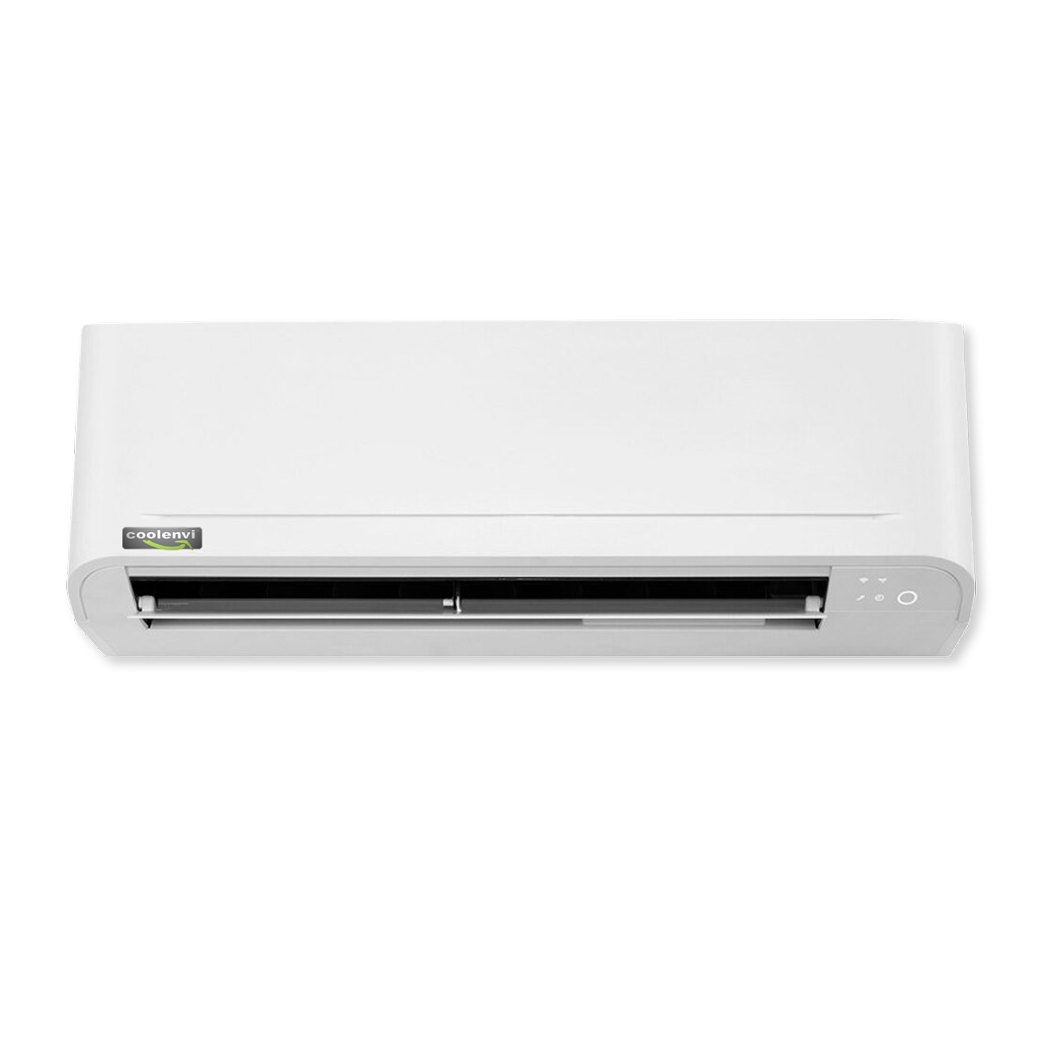

Coolenvi™ CLASSIC Wall SET 5.00/5.40kW A+ Heat Pump
€2,023.38*
% €2,498.00* (19% saved)Available, delivery time: 2-7 days
Product number:
SW10317.1
Product information "Coolenvi™ CLASSIC Wall SET 5.00/5.40kW A+ Heat Pump"
The Coolenvi CLASSIC wall unit impresses with efficient cooling and heating performance, providing optimal comfort all year round. With energy ratings of A++ for cooling and A+ for heating, it delivers powerful climate control without Wifi with low energy consumption.
- Inverter technology: High efficiency with reduced energy consumption
- Quiet operation: Comfortable use without disturbing noise
- Modern control: Intuitive operation via remote control or app
- Compact design: Elegant wall mounting, discreetly integrated
- Eco-friendly: Energy-efficient operation with sustainable refrigerant

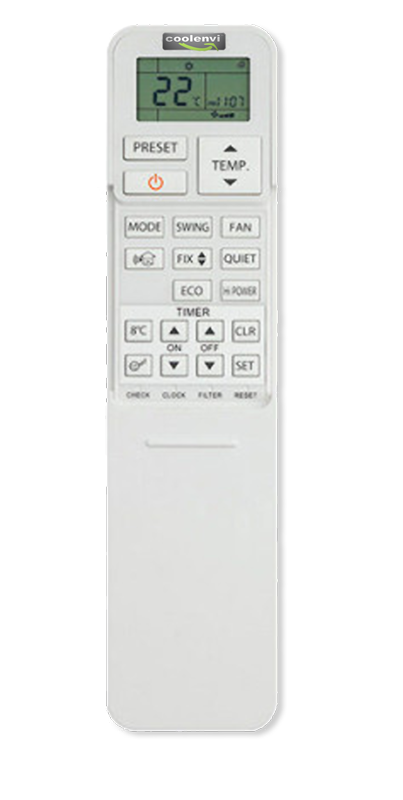

Robust, reliable and durable – the Coolenvi CLASSIC wall units combine high-quality technology with easy handling including infrared remote control and ensure perfect climate control in any room.
| RI - Nominal Cooling Capacity kW / min. - max.: | 5.00 / 1.10 - 5.35 |
|---|---|
| RI - Nominal Heating Capacity kW / min. - max.: | 5.40 / 1.10 - 6.00 |
| RI - Consumption kW max.: | 1.88 |
| RI - Power Supply V/Ph/Hz: | 220-240/1+N/50 |
| RI - Energy Class: | A++ / A+ |
| RI - Sound pressure level dB(A): | I 26 - 48 / O 46 - 59 |
| RI - Pipe dimension mm (inch): | 6,3 (¼) / 12,7 (½) |
| RI - Pipe Length (min.-max.) m: | 2 - 15 |
| RI - Height Difference (max.) m: | 8 |
| RI - IU Dimensions (HxWxD) mm: | 293 x 798 x 230 |
| RI - OU Dimensions (HxWxD) mm: | 550 x 780 x 290 |
| RI - Weight IU/OU kg: | I 9 / O 29 |
| RI - Refrigerant: | R32 |
