Coolenvi™ CLASSIC Console SET 2.50/3.20kW A+ Heat Pump
€2,182.95*
% €2,695.00* (19% saved)Available, delivery time: 2-7 days
Product number:
DE-CERI10ST-A.1
Product information "Coolenvi™ CLASSIC Console SET 2.50/3.20kW A+ Heat Pump"
The Coolenvi™ CLASSIC console unit stands out as a powerful Bi-Flow console for year-round comfort in rooms of approx. 20–25 m². With excellent energy efficiency (A++ for cooling and heating) and an innovative floor-heating effect, the system ensures an even, comfortable room temperature – efficient, quiet and reliable, even without WiFi.
- Bi-Flow air distribution: Variable dual air outlet at the top and bottom for optimal air distribution during cooling and heating
- High efficiency: A++ energy class with inverter technology for low power consumption and consistent performance
- Healthy indoor air: Large-area dust filter combined with an IAQ filter for air purification and particle reduction
- Flexible design: Compact form factor for discreet installation under window sills or on the wall

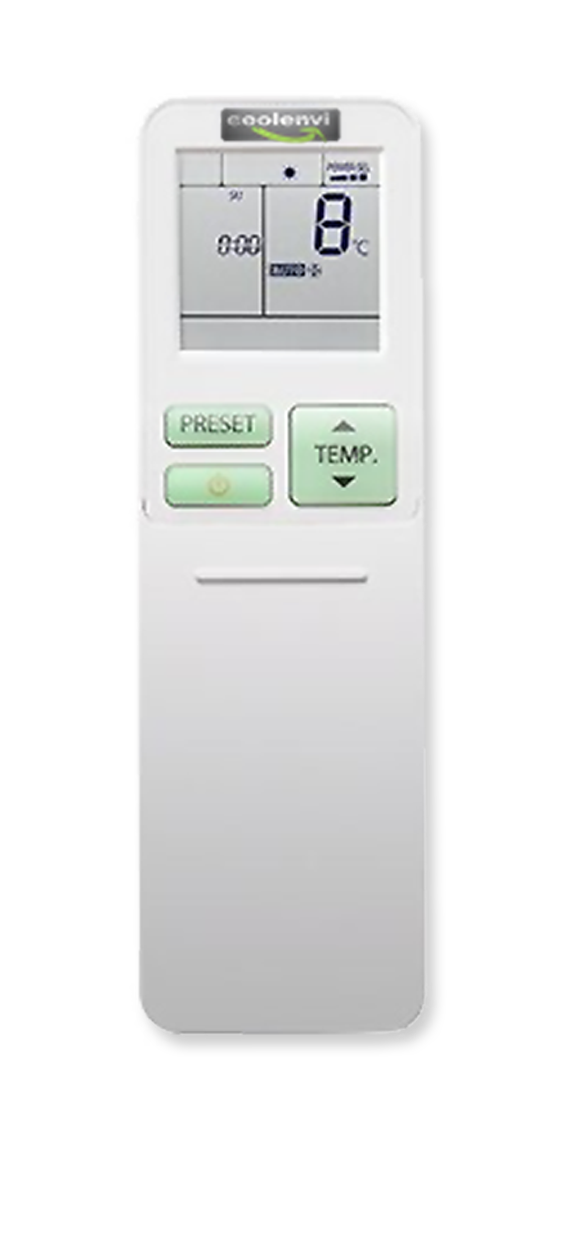

- Convenient control: Infrared remote control included, WiFi optionally retrofittable
Robust, durable and thoughtfully equipped: the Coolenvi console unit combines cooling, heating, dehumidification and air purification in one system. Optional features such as night comfort mode, weekly timer, frost protection (8 °C function), child lock, auto-diagnosis and preparation for optional leak detection make it a future-proof solution for demanding single rooms.
| RI - Nominal Cooling Capacity kW / min. - max.: | 2.00 / 0.76 - 2.40 |
|---|---|
| RI - Nominal Heating Capacity kW / min. - max.: | 2.50 / 0.76 - 3.30 |
| RI - Consumption kW max.: | 1.11 |
| RI - Power Supply V/Ph/Hz: | 220-240/1+N/50 |
| RI - Energy Class: | A++ / A+ |
| RI - Sound pressure level dB(A): | I 19 - 40 / O 44 - 58 |
| RI - Pipe dimension mm (inch): | 6,3 (¼) / 9,5 (3/8) |
| RI - Pipe Length (min.-max.) m: | 2 - 10 |
| RI - Height Difference (max.) m: | 8 |
| RI - IU Dimensions (HxWxD) mm: | 288 x 770 x 225 |
| RI - OU Dimensions (HxWxD) mm: | 530 x 660 x 240 |
| RI - Weight IU/OU kg: | I 9 / O 21 |
| RI - Refrigerant: | R32 |
